Introduction

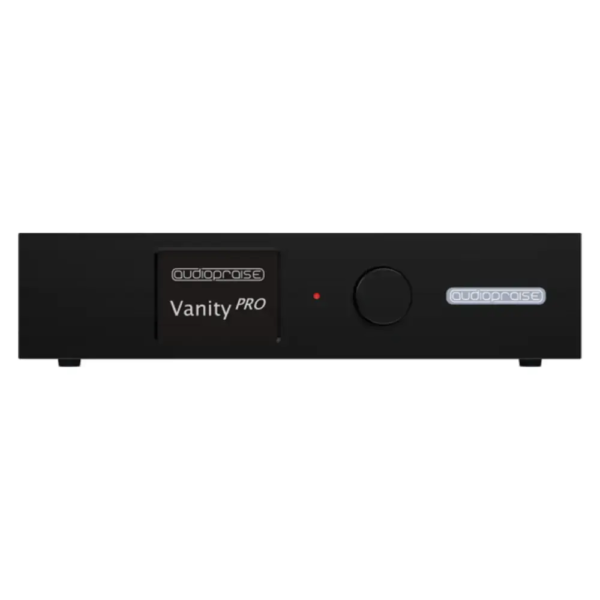

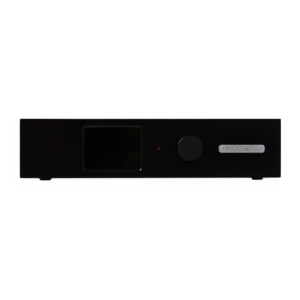

VanityPRO the art of pure digital audio extraction.
Features
– HDMI 2.0a input and output (up to 4K 60Hz).
– Max 8-channel 192kHz/24bit PCM and 6-channel DSD64 audio extraction.
– Custom high quality DSD to PCM conversion.
– Advanced jitter attenuation.
– DSD to DoP encoding.
– Audio Return Channel (ARC).
– HDMI audio status monitoring.
– Multiple options for multi-channel or stereo digital audio outputs. All major formats.
– Synchronization clock outputs (Word Clock and Super Clock).
Downloads
Description
Can HDMI, which is primarily used for video, be similarly enhanced for audio? Although HDMI is the primary method of transmitting audiovisual signals in consumer environments and works well with high-resolution audio and video, it has yet to gain a strong foothold in the hi-fi world.
Besides some non-technical factors, one of the biggest challenges with HDMI audio is the quality of the recovered clock from the HDMI signal and the electrical noise associated with it. Despite improvements in recent HDMI receivers, the restored clock continues to be plagued by significant phase noise. While this is usually not a problem for consumer audio, such as home theaters and soundbars, the shortcomings of HDMI audio become immediately apparent in critical listening. In addition, HDMI audio is known to be sensitive to electromagnetic interference, cabling quality, ground loops, and is generally considered inferior in the hi-fi world to specific digital audio transport methods such as SPDIF or AES/EBU.
In general, there is usually nothing wrong with the audio data itself, provided the receiver can handle all available digital formats and sampling rates on the source side. The problem is mainly in the way the audio data is packaged and merged with the video data into a high-frequency digital signal, and finally recovered on the HDMI receiver (sink) side. Although there are many inexpensive HDMI audio extractors on the market that can output digital audio via S/PDIF at sampling rates up to 192 kHz, they cannot compete with high-end digital transport systems in terms of audio quality.
What distinguishes the Vanity
PRO
from other HDMI audio extractors? In essence, the Vanity
PRO
addresses each HDMI audio problem individually and offers numerous additional features that other devices do not. For example, the Vanity
PRO

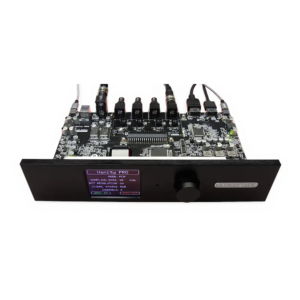

electrically isolates the HDMI portion from the sensitive audio and clock circuits to eliminate all noise and interference associated with video playback and HDMI signaling. Both isolated sections have separate power connections.
Technical specifications
HDMI
– Version 2.0a
– 1x input and 1x output for pass-through + ARC
Digital audio outputs
– Options for 8- or 2-channel (stereo) output module
– 4x BNC/RCA/XLR or 1x USB for 8-channel output
– 1x XLR + 1x BNC + 1x RCA + 1x TOSLINK for 2-channel output
– protocols: S/PDIF (IEC958 / EIAJ CP1201), AES/EBU and TOSLINK
– transformer isolated outputs
– Output impedance: 75Ω for BNC/RCA and 110Ω for XLR
– linear PCM 16/24 bits
– supported sampling frequencies: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
S/PDIF re-clocking
– 2x custom low jitter on-board VCXO
– digitally controlled frequency tuning, fc<<1Hz
– ultra low-noise current controllers for VCXO and TX circuits
High quality DSD to PCM conversion
– Custom-developed Zero Alias Linear Phase Filter
– 37bit arithmetic / 47bit accumulator
– output sample rates: 88.2kHz / 176.4kHz
– 4 selectable DSD to LPCM filter characteristics
– full precision 4.0 DSD down-mix option
– DoP v1 output encoding of raw DSD
Volume control with full precision
– less than 0.001dB gain error
– bit-accurate volume bypass at 0dBFS
– TPDF dithering
– PCM and DSD level adjustment and channel trim
Synchronization outputs
– Word clock output: BNC, 50Ω impedance, 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
– Super-clock output: BNC, 50Ω impedance, 22.5792MHz or 24.576MHz.
User configurable functionality
– DSD to LPCM output sampling rate: 88.2kHz / 176.4kHz
– DSD to LPCM output bit depth settings: 16 / 24bit
– PCM and DSD output level matching enable/disable
– Multichannel down-mix individual channels enable/disable
– DoP v1 output encryption enable/disable
– 4 user-selectable DSD to LPCM filter characteristics
– Adjustable output gain (volume) with 0.5dB step for each channel

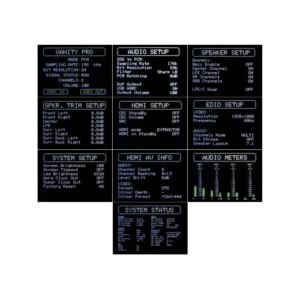

HDMI and audio monitoring and system diagnostics
– Monitoring HDMI stream parameters and EDID control
– 8-channel audio level measurement display
– Comprehensive system diagnostics
Nutrition
– Separate power supply for HDMI and audio via USB-C connectors
– 2x DC input 5V / 1A
Dimensions & weight
– w/d/h: 266/183/65 mm, including output connectors
– weight: 1kg
