Introduction

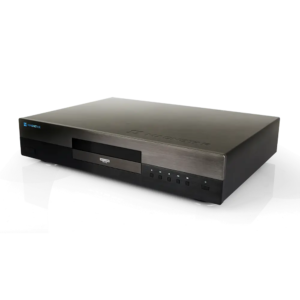

Equipped with the renowned professional quad-core system Media Tek MT8581 chipset, the UDP800 4K UHD Blu-ray player features advanced image decoding and processing technology, with 4K ultra HD and HDR support, including Dolby Vision and HDR10+, ensuring clear and sharp images and rich colors. Elegant and durable, the 4K UHD Blu-ray player UDP800 with its metal casing exudes the beauty of science and technology in simplicity and introversion, making your audio-video life even better.

Description
A reference in image quality
The UDP800 can play DVDs, Blu-rays, 4K UHD discs and even media files, with support for h265 & h264. The picture quality is sharp and clear, with sharp details that are pleasing to the eye.
HDR technology
The UDP800 has dazzling brightness, contrast and beautiful colors. The image is rich and full, with vivid colors even in low light and backlight. UDP800 supports HDR10, HDR10+ and Dolby Vision with stunning HDR to SDR conversion, with BT.2020/BT.709/BT.601 color space support.
4K upgrading
The UDP800 can convert low-resolution video sources to a resolution of 4K 50/60Hz (3840 x 2160). Four times the resolution of full HD 1080p, enhancing the home video experience.
High Fidelity lossless music
The UDP800 can decode DSD64/128, multi-channel DSD64 and 192kHz/24-bit PCM formats with support for AIFF, ALAC, APE, FLAC and WAV audio files. Enjoy 4K hd picture quality without missing every detail of sound. UDP800 supports Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Atmos and DTS-X, so you can enjoy the best panoramic sound and an immersive experience.
User Interface
The interface of the UDP800 is designed to give you a smooth and intuitive experience, allowing easy access to various settings and local USB devices and networks.
Full multimedia experience
UDP800 supports multiple disc and media formats, such as UHD-BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, CD-R/RW. Additionally, a USB HDD up to 16TB is supported, with direct access from your computer or NAS over your local network using DLNA or SMB protocols, for a better multimedia life.

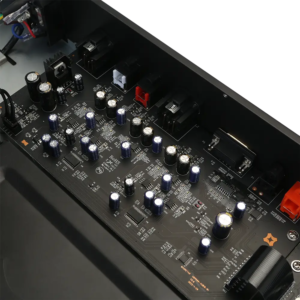

High-quality digital-to-analog converter

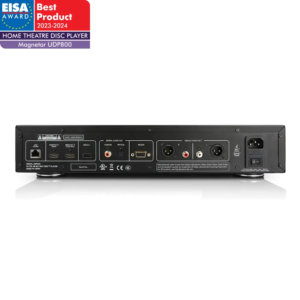

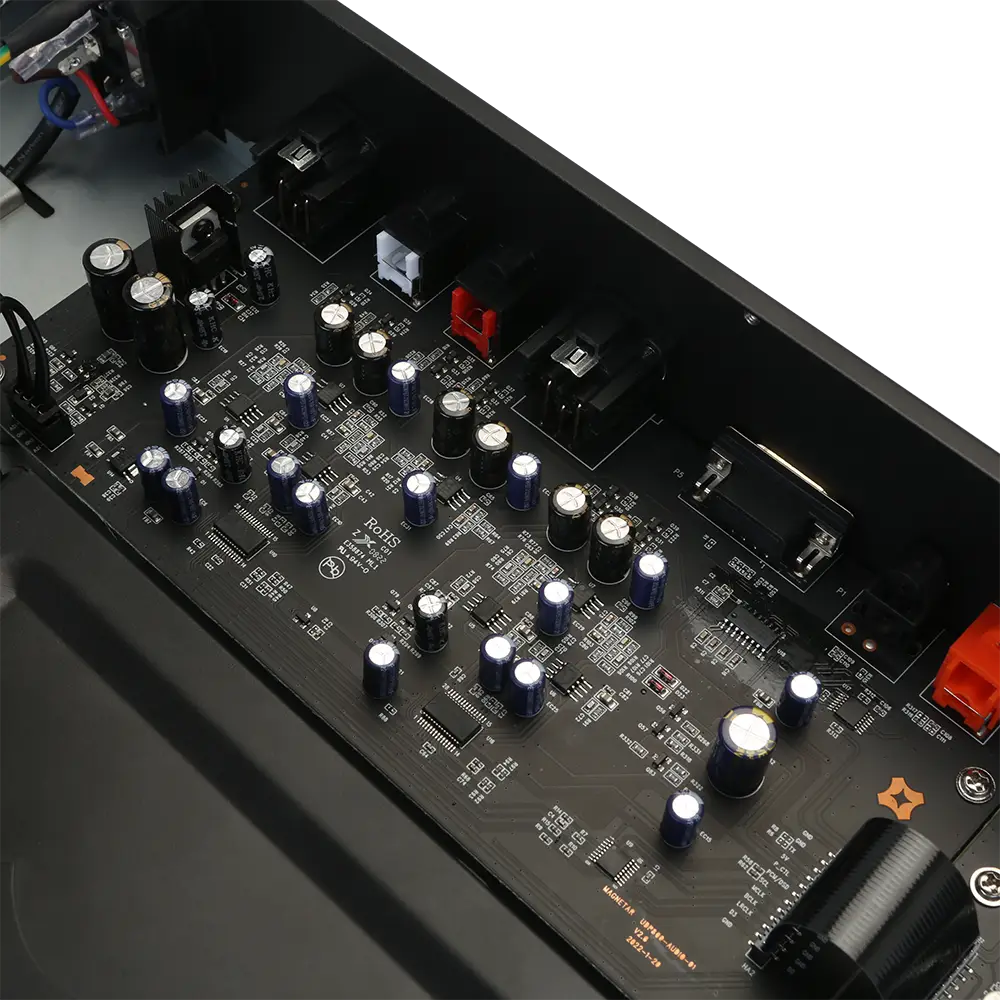

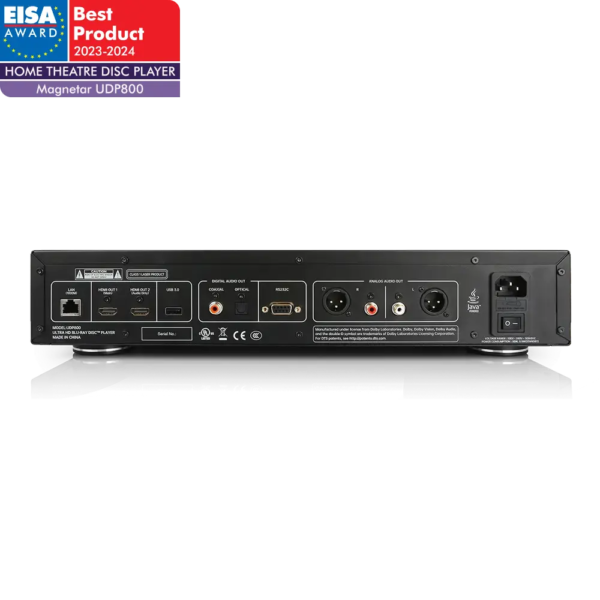

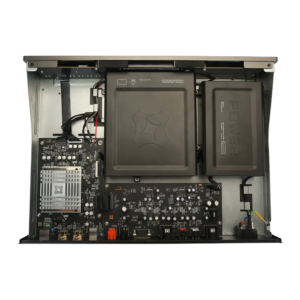

For pure audio playback, the UDP800 uses a 4-layer circuit board, with each channel having independent wiring. Two independent Burr-Brown PCM 1795 DAC processors are used for two-channel D/A decoding, processing the left channel and the right channel, respectively. And high-quality MUSES8920 OP-AMP for audiophile sound quality. UDP800 comes with stereo XLR gold-plated balanced connections and stereo RCA gold-plated unbalanced outputs. Pure audio mode function is available to offer audio enthusiasts uncompromising sound quality.
Powerful transformer
MAGNETAR engineers selected a special 60W high-power low noise transformer specifically for the UDP800, with a two-stage filter design along with Japanese Rubycon electrolytic capacitors to meet the high transient response required by surround sound systems and high-resolution audio. A separate metal housing lowers noise levels and provides stability and silence, further improving audio and video quality.

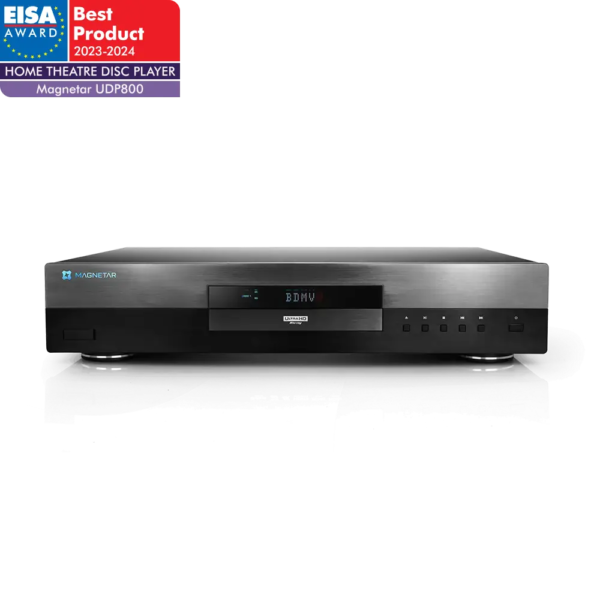

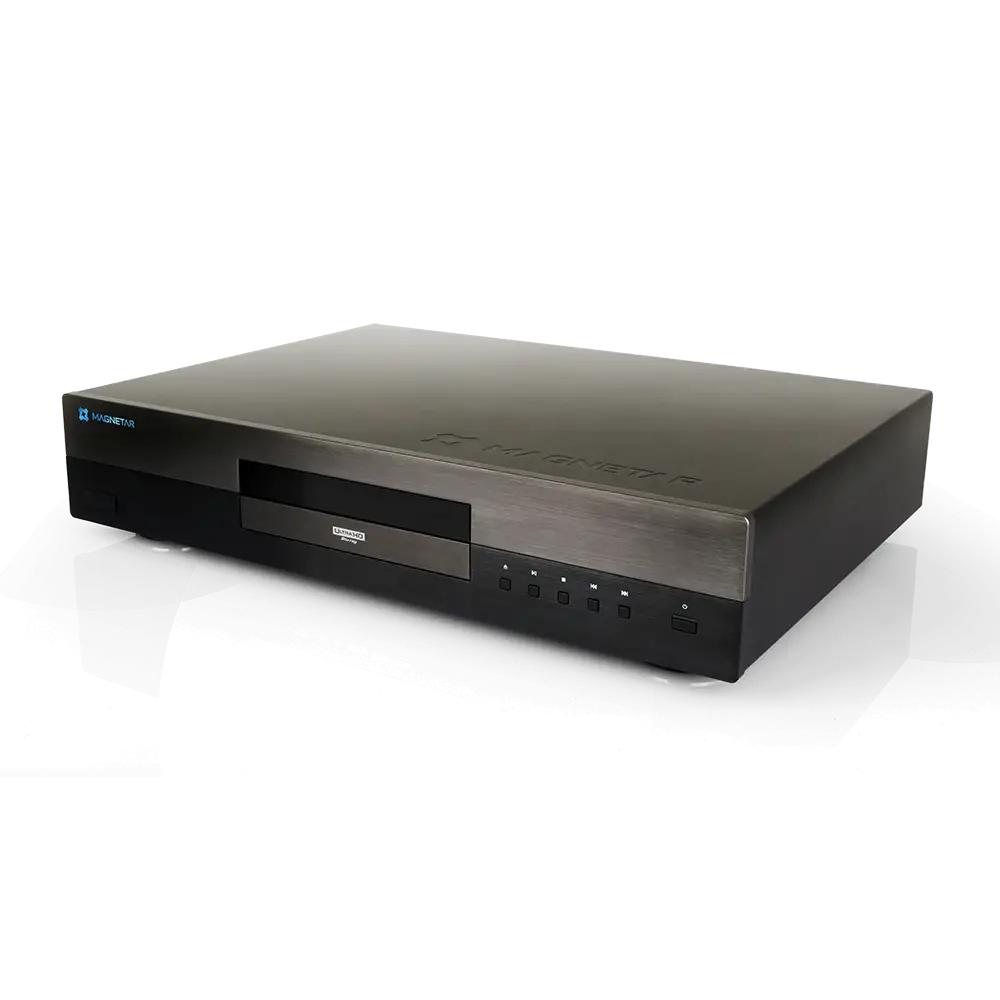

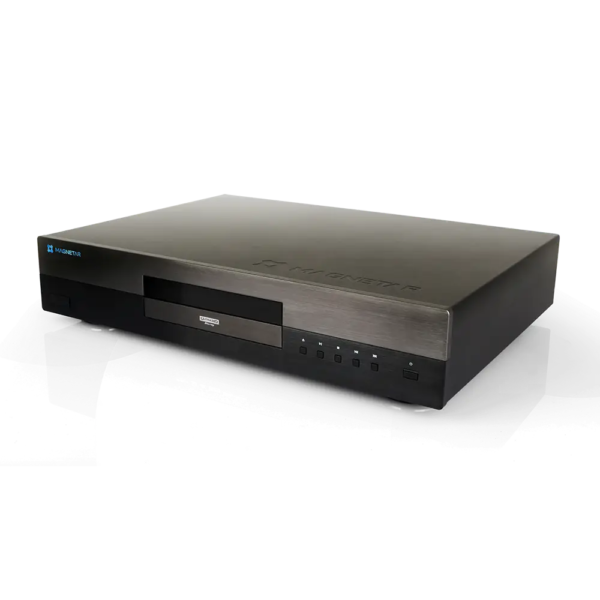

Elegant and solid quality in chassis construction

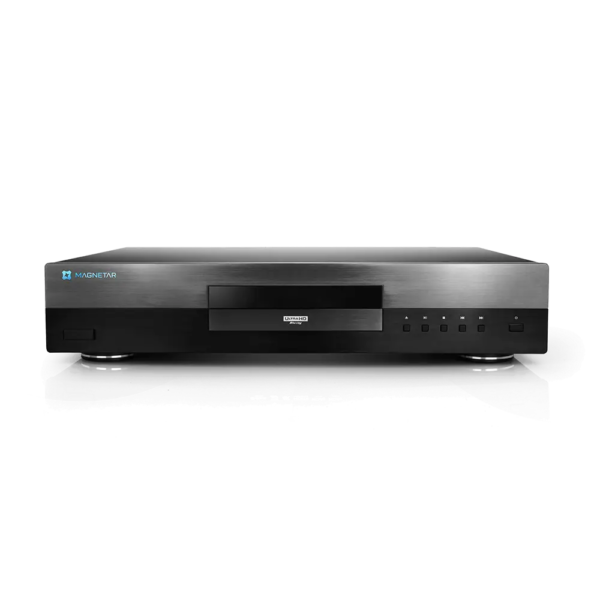

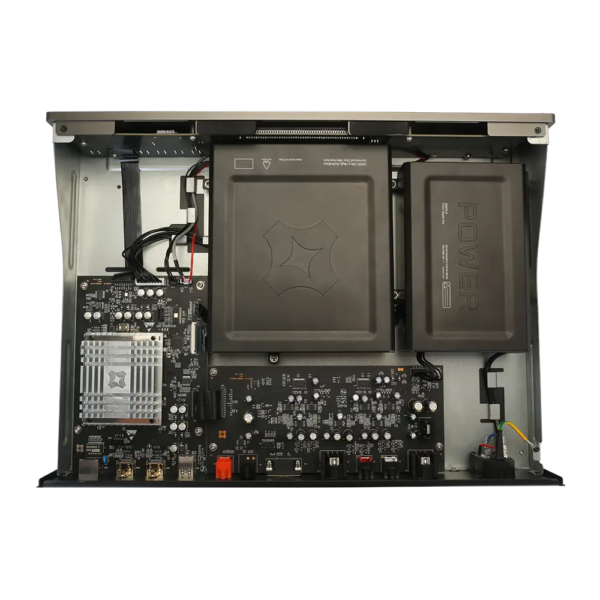

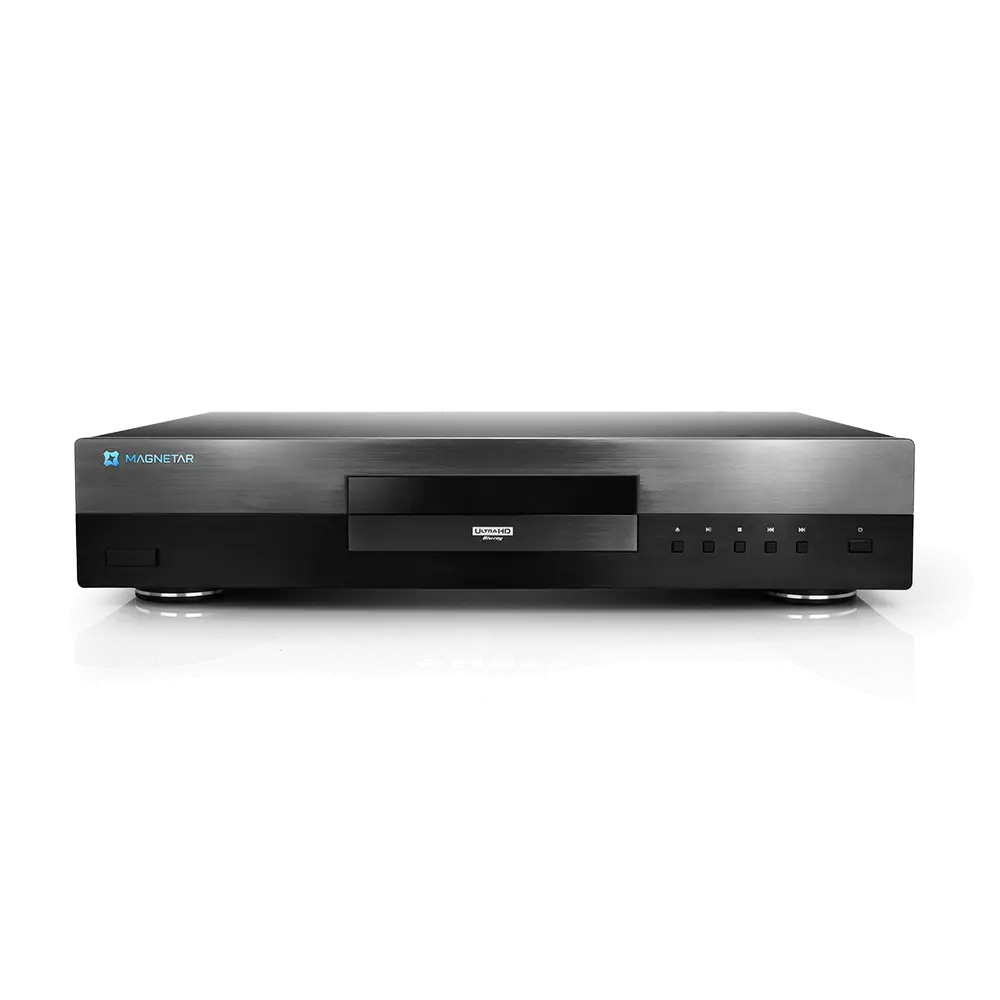

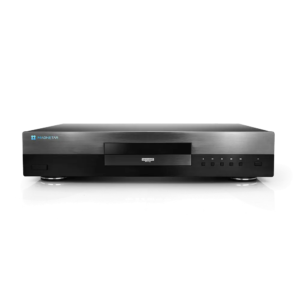

Achieving exceptional audio and video performance requires high-quality chassis construction and stability. The UDP800 features a brushed aluminum front panel, in a solid highly rigid metal chassis to greatly enhance audio and video performance, with a signature double-layer chassis structure thickened to 1.6 mm and a 3 mm steel plate under the base, reducing vibration and generated noise during playback. Key internal components, including the CD mechanism and power supply, are independently shielded to reduce external magnetic fields. With such a high-quality design, the MAGNETAR UDP800 weighs only 8kg!
Technical specifications
Supported disc formats:
- UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

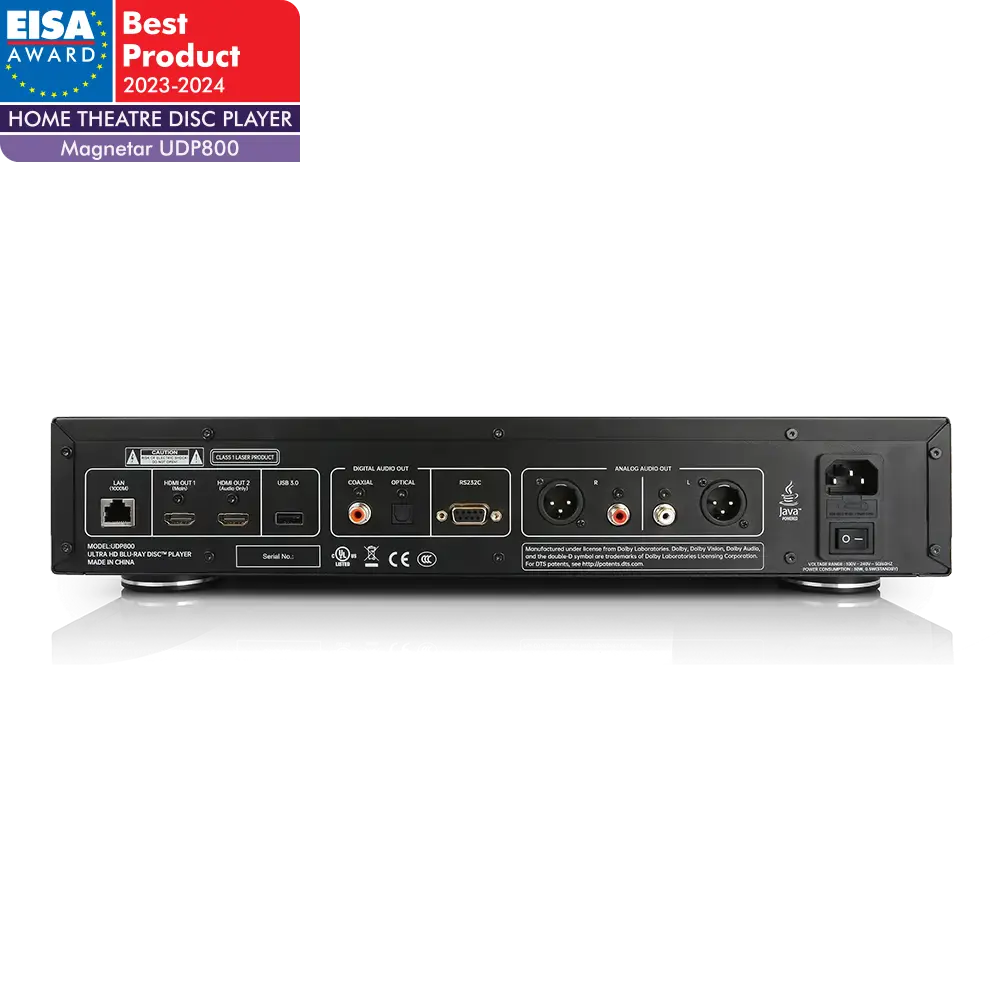

Outputs:
- Analog audio: stereo
- Independent analog stereo audio: XLR balanced output, RCA output
- Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
- HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
- HDMI video: UHD / 1080p24 / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Analog audio features
- Frequency range: 20Hz-20kHz (-3dB ~ +0.05dB)
- Signal-to-Noise Ratio: >120dB
- Total harmonic distortion + noise: <0.00018%
- Output Level: (RCA) 2.1±0.2Vrms. (XLR) 4.2±0.4Vrms
- Dynamic range: >120dB
- Channel separation: >120dB
General specification
- Power supply: AC 100-240V, 50/60Hz
- Power: 30 W (Standby: 0.5 W in power-saving mode)
- Dimensions: 430 mm x 300 mm x 90 mm
- Weight: 8 kg
- Operating temperature: 5°C – 35°C
- Humidity: 15% – 75%
