Introduction
NOTE: Requires necessary installation knowledge please contact us in advance.
The new SVS 3000 In-Wall incorporates technological breakthroughs from the 16 Ultra Series, 4000 Series, 3000 Series, 2000 Pro Series and 1000 Pro Series. This technology is combined with exclusive 3000 In-Wall innovations to set a new standard for the value of subwoofer performance. More people than ever can now enjoy room-shaking bass below the human hearing threshold with flawless accuracy and control.
Features
– Dual active 9-in drivers deliver extreme power with control and accuracy.
– Optimized motor for dual active drivers.
– Powerful and groundbreaking Sledge STA-800D2C amplifier.
– Advanced 50 MHz DSP engine
– Unmatched processing power of a Home Audio Subwoofer.
– 3000 In-Wall Smartphone App
– Easiest way ever to manage Subwoofer DSP and control.
– Sledge amplifier inputs and DSP control.
– Acoustically insulated and reinforced closed cabinet.
– Dual Subwoofer Option.
– Paintable, magnetically attached removable grid.
Downloads
Description
Massive Cinematic Bass, no floor space required.
Developing an in-wall subwoofer that can produce a deep, chest-pounding sound while maintaining effective heat and power management, as well as being easy to install, has always been a noble pursuit for subwoofer brands. Many have tried, all have failed. Until now.For the first time, an architectural subwoofer delivers the promise of immersive, cinematic bass without compromise. A feat of inspired engineering, the SVS 3000 In-Wall subwoofer is ready for easy installation in an existing or new room and features dual high-range 9-inch active drivers powered by an 800 watt RMS, 2,500+ watt peak amplifier with discrete MOSFET output.Shallow and narrow enough to fit between standard wall studs, with options for existing rooms or new construction, the SVS 3000 In-Wall Subwoofer thrills music and home theater fans with breathtaking bass from an enclosure that remains virtually invisible in a room and requires no floor space.SVS engineers bent the laws of physics by designing a subwoofer ecosystem capable of producing a massive, effortless response with precise control and accuracy. Sturdy aluminum front and rear baffles with reinforced internal bracing ensure that the sealed cabinet remains acoustically inert, even when the dual active 9-in high-excursion drivers are driven to extreme levels.Reference amplifier technology from the flagship SVS 16-Ultra subwoofers was applied in the Sledge STA-800D2C amplifier. Carefully rated at 800 watts RMS and over 2,500 watts peak power with discrete MOSFET output, the 3000 In-Wall amplifier unleashes ample power on demand with flawless control to maximize the potential of the dual 9-in driver. All this in an easy-to-install 2U rack-mount amplifier.Like all SVS models, the 3000 In-Wall Subwoofer features the groundbreaking SVS Subwoofer Control Smartphone App. It offers the most convenient way ever to control volume, access multiple DSP functions, and program custom preset tuning profiles optimized for music, movies, gaming, and more. All accessible with a single touch from your favorite chair.
Technical specifications
Frequency range/acoustic data:
- +/-3dB 22Hz to 250Hz
- Low frequency in the room: -19 Hz
- Single subwoofer Max output @ 32Hz 1/8 space 1m = 107.6dB
- Dual subwoofers Max output @ 32Hz 1/8 space 1m = 110.6dB Combined
Subwoofer specifications:
- Subwoofer exterior (with grille) – 26.76″ (679.6 mm) H X 13.76″ (349.6 mm) W X 1.34″ (34 mm) D
- Subwoofer exterior (without grill) – 26.57″ (674.9 mm) H X 13.58″ (344.9 mm) W X 0.35″ (8.8 mm) D
- Subwoofer Only enclosure dimensions – 25″ (635 mm) H X 12″ (305 mm) W X 3.74″ (95 mm) D
- Weight of subwoofer (with grille): 11.6 kg
- Weight of subwoofer (without grille): 10.4 kg

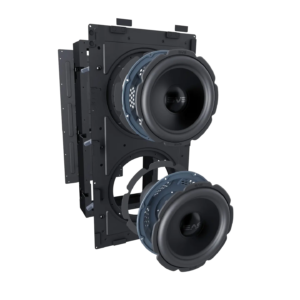

- Dual 9-inch active high-excursion drivers electrically paralleled for massive output from a sonically inert sealed enclosure.
- Ultra rigid aluminum and MDF cabinet design with fully reinforced 2.5 mm thick aircraft grade aluminum front and rear baffles sandwich a fully reinforced 0.75 “(18 mm) MDF frame for an inert and resonance-free enclosure, maximized internal acoustic volume, thoroughly tested and optimized for maximum strength, minimum cabinet coloration and maximum room acoustic output.

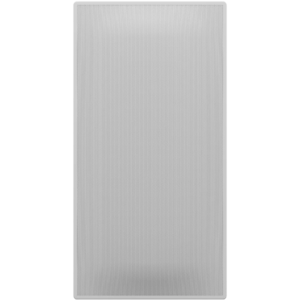

- Paintable, magnetically attached removable grid

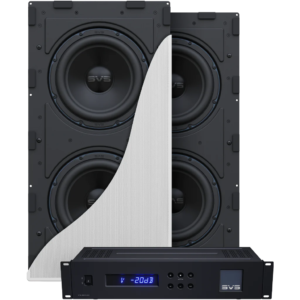

- Available in Single Subwoofer System or Dual Subwoofer System configurations
Driver specifications:
- All-new high-excursion 9-inch drivers specially designed for shallow depth and maximum linear output.
- Lightweight and rigid aluminum ventilated cone with aluminum dust cap generates huge output with extremely accurate frequency response.
- Proprietary injection-molded Long-throw surround with FEA optimized design ensures longevity and extreme excursion for room-boosting bass.
- Precisely tuned overhung motor configuration for flawless woofer control at all drive levels.
- Total excursion (each driver): 23.4 mm Xmax, 29 mm Xmech
- The 4-layer high-current copper voice coil winding minimizes distortion and power compression while providing effective heat dissipation and tuned magnets for accuracy at high excursion.
- Formidable proprietary ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transients
- 1100 low-profile aluminum cone cap provides excellent rigidity, lightweight moving mass and optimized thermal conductivity.
- An oversized motor system generates massive magnetic fields to drive room-filling sound pressure levels at precise transient rates.
- Precise machining of close-tolerance motor and suspension components ensures control and linearity at full excursion.
- 6061 aluminum shorting ring improves magnet linearity and reduces distortion and chatter induction
- 3003-H18 high-temperature aluminum former/bobbing
- 5-inch composite cotton-poly linear spin for extreme excursion
- Dual 24-strand plated copper leads
- High performance oversized Y30 ferrite magnet motor
- Top plate uses low-carbon 1006 steel for optimal magnet operation
- Oversized cold forged low carbon steel ML08AL T yoke for maximum cooling and magnetic action
- Custom 9-inch driver baskets with FEA-optimized powder-coated frames for maximum rigidity, thermal conductivity and mechanical damping.

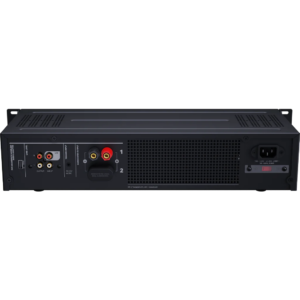

Amplifier Specifications:
- Effortless on-demand power of 800-watt RMS, 2,500-watt peak Sledge STA-800D2C amplifier with fully discrete MOSFET output.
- Highly efficient class-D switching topology with massive 25-amp 600-volt MOSFETs results in ample current, vanishing distortion and excellent linearity for generating massive low-frequency output with precise precision
- High-resolution 50MHz Analog Devices Audio DSP with dual precision 56-bit filtering best processing power in the industry for advanced control and pristine output.
- User-adjustable settings for optimizing system performance: low-pass filter, phase, polarity, room gain and three parametric equalizers
- Pioneering SVS subwoofer DSP and Bluetooth BLE smartphone control app for iOS, Android and Amazon devices allow custom tuning and user presets for any room and system.
- Single and Dual Subwoofer Outputs designed to always output 800-watts of RMS power across a single subwoofer or evenly distributed across dual subwoofers.
- Stereo RCA input and output with ultra-wide input voltage for consumer and professional audio applications
- Wide input voltage bandwidth for consumer and professional audio up to 4V line level input
- Intelligent Control Interface (ICI) front-panel user interface with 8-character blue-LED for rich display and easy push-button operation.
- Auto/On and 3-12V AC/DC trigger for maximum ease of installation
- Input impedance 16 kOhm (unbalanced RCA)
- Included rack-mount kit for easy wrack installation
- High-current detachable cord
- Environmentally friendly 0.5-watt low standby power consumption
- RoHS compliant, lead-free construction, global safety certifications
