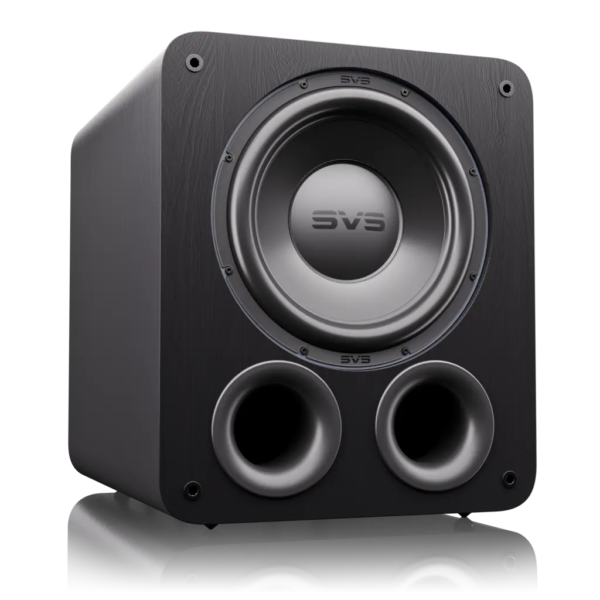

SVS PB-3000 R|Evolution
€ 2.199,00
Reference Ported Cabinet Subwoofer
The ported enclosure provides impressive low-end performance with deep extension down to 16 Hz. Designed to effortlessly fill large rooms with powerful, dynamic low end and a palpable cinematic experience.
Introduction
NEW and available soon
The PB-3000 R|Evolution takes every musical and cinematic moment to the next level. Built around a completely newly developed 13-inch SVS high-excursion driver and a powerful 1,200-watt Continuous MOSFET amplifier, this bass-reflex subwoofer delivers low that not only reaches deep, but is palpable and lifelike. Fast, controlled and tonally perfect – exactly as it should be.
With explosive dynamics, negligibly low distortion and effortless output, the PB-3000 R|Evolution fills any room with authority. The result is low that hits harder, runs deeper and remains pure, even at extreme volumes. Whether you’re listening to music, experiencing movies or playing games, this subwoofer lets you experience every impact intensely.
Features
- High-Excursion 13-inch SVS driver effortlessly fills the room with deep, authoritative low, combined with exceptional precision and detail reproduction.
- Flat-Edge Wound Split-Wind voice coil maximizes magnetic force at high excursion, while extremely low mass ensures fast response and high efficiency.
- 1,200 watts continuous / 4,000+ watts peak Class-D amplifier with discrete MOSFET output stage – rarely used in this class – delivers huge power reserves with complete control and crisp clear signal.
- 295 MHz Analog Devices DSP, the most advanced DSP ever applied in a consumer subwoofer, monitors and optimizes power, thermal behavior, driver output and overall system performance in real time.
- SVS Subwoofer Control App makes operation intuitive and refines sound quality in any room.
- Auto Room EQ automatically applies high-precision EQ filters to perfectly match the bass output to the acoustics of the listening room, for a seamless and optimally integrated bass experience.
Description
Reference subwoofer performance goes deeper than ever
A subwoofer should do more than just produce sound. It must be tangible, create an experience and leave a lasting impression. That vision is the foundation of the 3000 R|Evolution Series. Based on technologies from the groundbreaking SVS 17-Ultra R|Evolution Series, which have redefined the performance standard, these models position themselves as the powerful centerpiece of the SVS subwoofer range. They deliver exceptional output, deep extension and lightning-fast transient response, with distortion that is practically imperceptible.
The 3000 R|Evolution Series is the result of more than two decades of acoustic innovation and uncompromising engineering. Every design detail is focused on intensifying music, home theater and gaming – with an emotional impact you not only hear, but feel. These are subwoofers that do not simply reproduce the low, but release it: tight, musical and with absolute authority.
Combining the most advanced SVS subwoofer technology ever developed with completely new innovations, the PB-3000 R|Evolution sets a new benchmark for bass-reflex subwoofer performance. Within its class – and far beyond – it guarantees unprecedented power, control and experience.
High-Excursion 13-inch SVS driver
Delivers deep, authoritative low frequencies with exceptional detail, articulation and tonal accuracy.
Flat-Edge Wound split-wind voice coil
maximizes magnetic force at large strokes, maintaining clarity, speed and control.
Performance enhancing SVS switching power supply
conditions mains voltage for optimum performance under all conditions, ensuring clean, stable and effortless output even with the most demanding material.
SVS Subwoofer Control smartphone app
makes setup fun and easy and improves integration, allowing the subwoofer to blend seamlessly with any system for a more natural and authoritative bass response.
1,200 watts continuous (4,000+ watts peak) Class-D amplifier
with discrete MOSFET output delivers tremendous power while maintaining pure signal integrity and high precision control.
295MHz Analog Devices DSP
is the most advanced processor ever used in a subwoofer. It enables the subwoofer to command a room with effortless authority, while significantly expanding its tuning and control capabilities.
Technical specifications
- Driver: 13-inch SVS High-Excursion driver
- Amplifier: 1,200 watts continuous power (4,000+ watts peak), Class-D
- Frequency range:
- 16 Hz – 235 Hz (±3 dB, default mode – all ports open)
- 17 Hz – 270 Hz (±3 dB, sealed mode – all ports closed)
- Dimensions: 557 × 465 × 626 mm (h × w × d)
Frequency response & acoustic performance
- Extremely deep bass response up to 16 Hz in standard ported mode
- Dual tuning: choice between maximum output (ported) or extra precision (sealed)
- In small to medium-sized rooms, 2-3 Hz additional layer extension is to be expected
- Roll-off characteristic optimized to maximize room gain
- Measurements made on 2-meter ground plane, quasi-anechoic and free of reflections
Housing & construction
- Available in Piano Gloss Black and Premium Black Ash

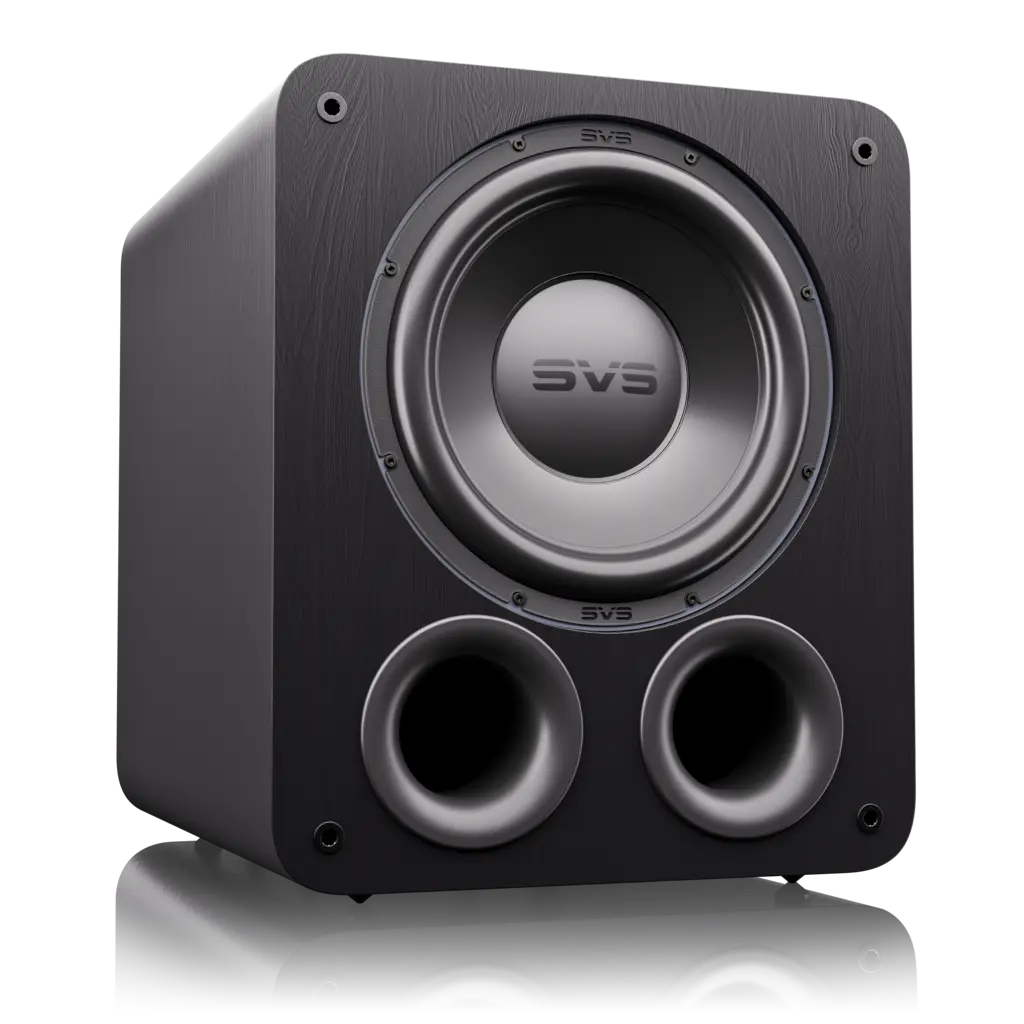

- Front-firing 13-inch long-throw driver
- Two high-flow 3.5-inch bass ports for maximum airflow and minimum compression
- OLED display and operator interface with Display Flip function

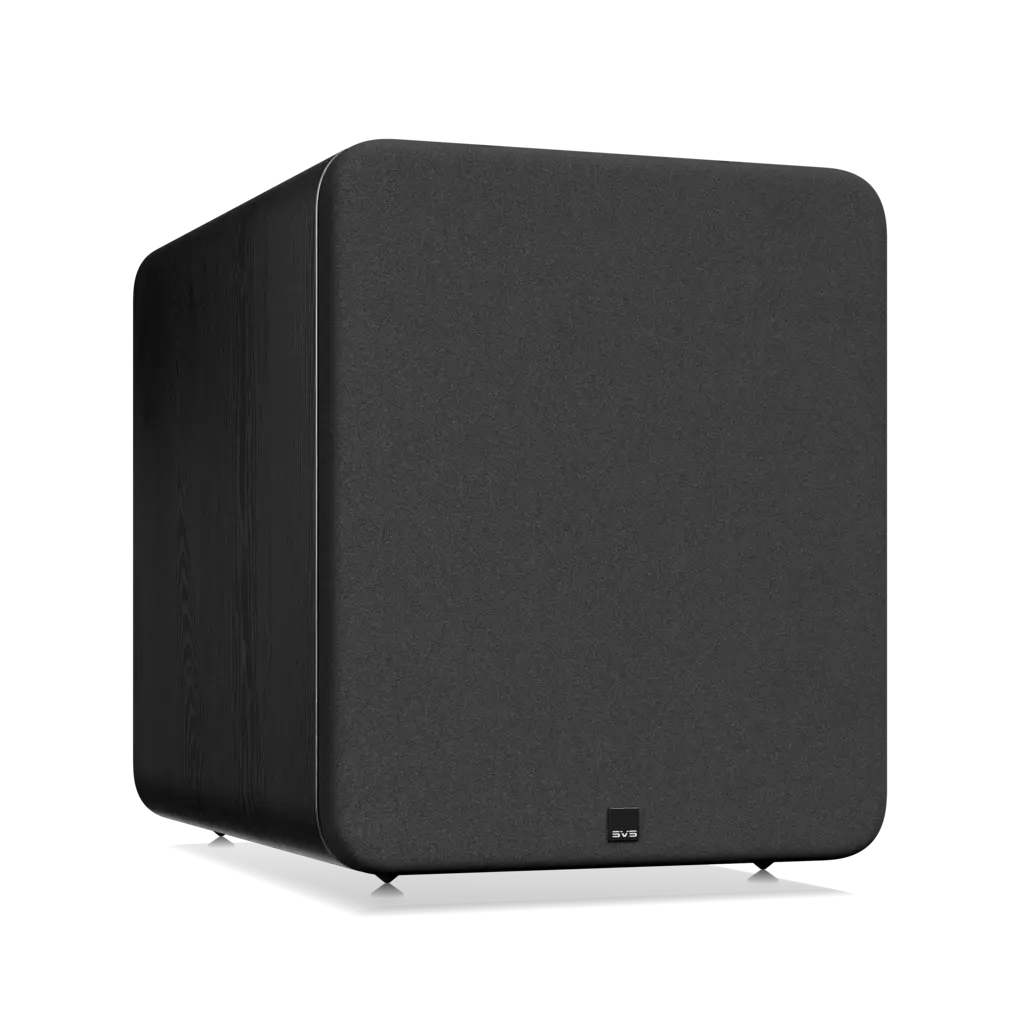

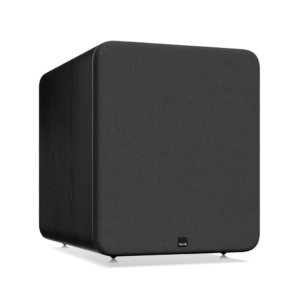

- Extra-thick, non-resonant ABS grille with acoustically transparent fabric
- Heavy-duty MDF enclosure with internal reinforcements for resonance-free performance at high levels
- Screw-on isoelastomer feet for improved stability and reduced vibration artifacts
Dimensions:
- With grille: 557 × 465 × 626 mm
- Without grille: 557 × 465 × 597 mm
Weight:
- Net: 38.6 kg
- Shipping weight: 47.3 kg

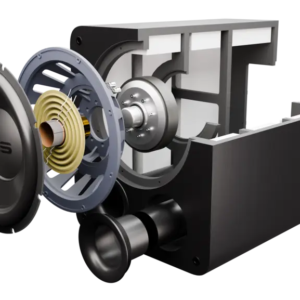

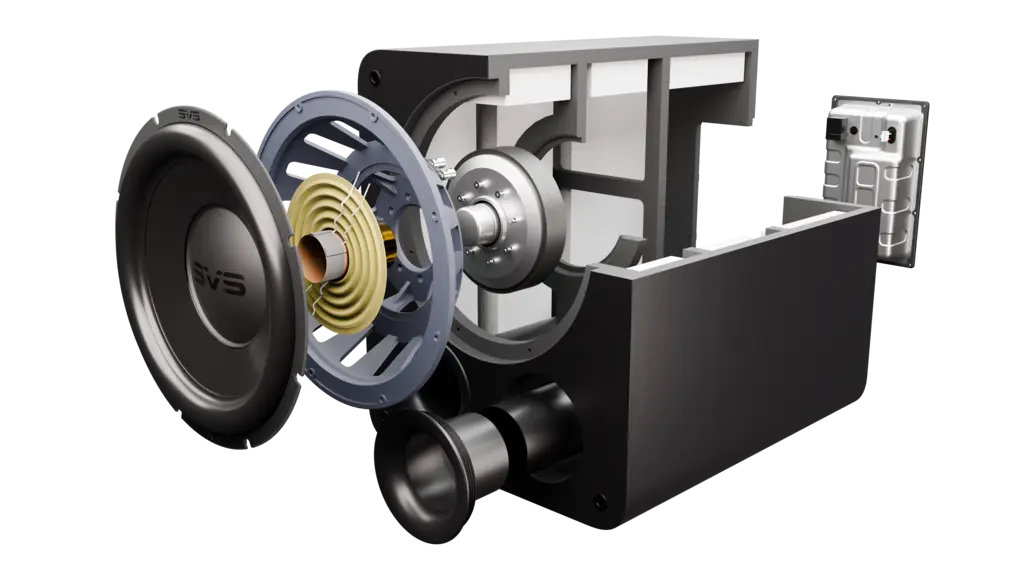

Driver technology
- Proprietary developed 13-inch long-throw driver with overhung motor design
- Total driver mass: 10.5 kg, including 8.4 kg motor
- 30.1 mm Xmax and 72.9 mm Xmech for extreme, controlled deflection
- Flat-edge wound split-wind voice coil with aluminum former for optimal cooling
- Two massive Y30 ferrite magnets for maximum power and control
- Cast aluminum chassis with high rigidity and minimal energy losses
- Lightweight aluminum cone for fast, neutral and powerful low-end reproduction
- Optimized cooling and extremely low distortion even at reference levels
Amplifier & DSP
- 1,200 watt Class-D amplifier with more than 4,000 watts of peak power
- 50% higher continuous power than the previous 3000 series
- Advanced 295 MHz Analog Devices DSP with 56-bit processing
- Real-time monitoring of power, temperature, current and driver output
- THD+N < 0.05% at rated power
- Highly efficient resonant SMPS power supply with stable 160V rail
- Convective cooling without external heat sinks for quiet and reliable operation

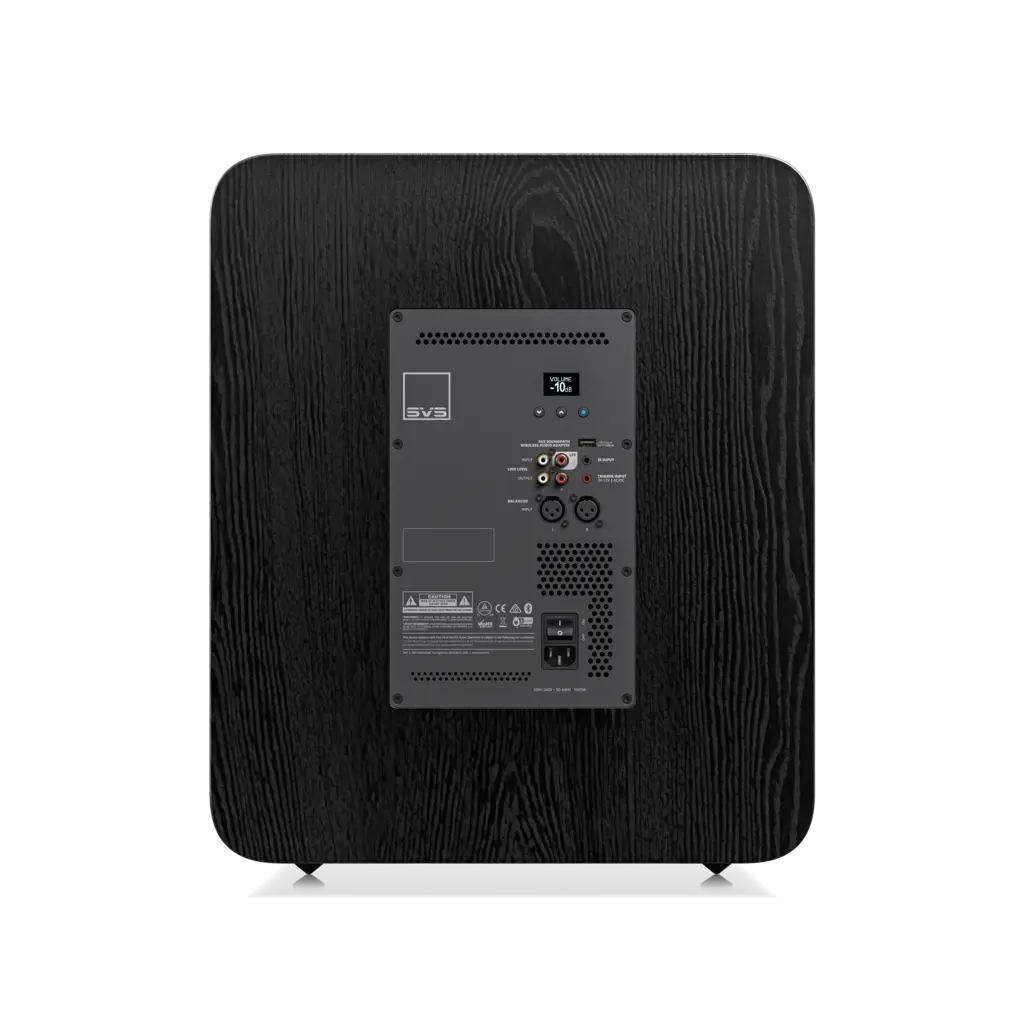

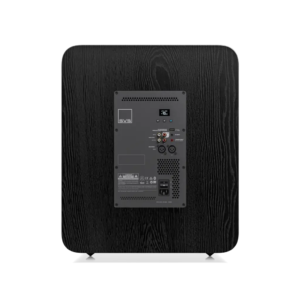

Connections:
- Unbalanced RCA
- Balanced XLR
- 3.5mm trigger and IR input
- USB power supply for SVS SoundPath Wireless Adapter (optional)

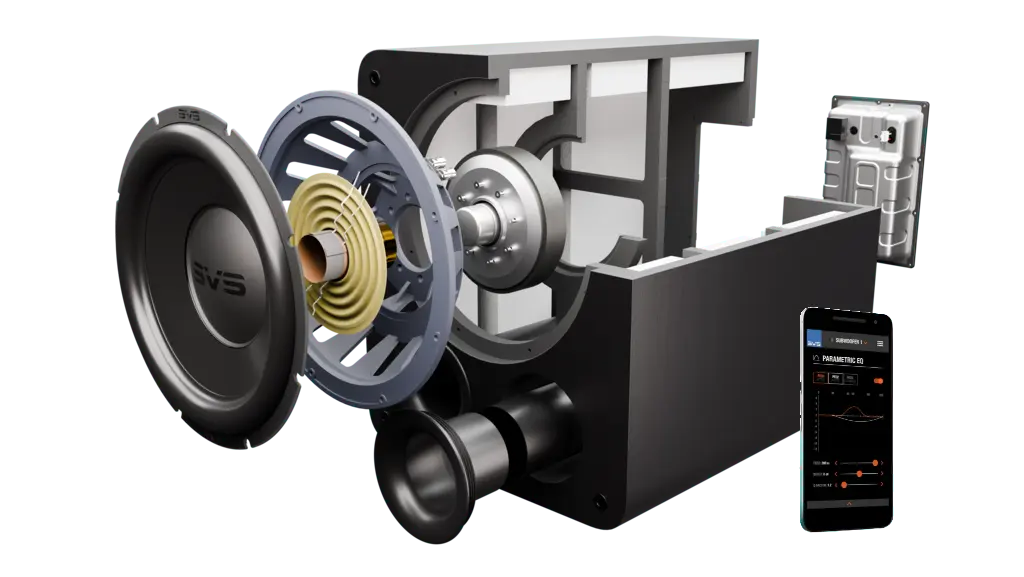

SVS Subwoofer Control App
- Available for iOS, Android and Amazon Fire
- Full control over volume, crossover, phase, polarity and 6-band PEQ
- Room Gain Compensation and tuning modes for ported and sealed use
- Three memory presets for quick system settings
- Real-time two-way feedback between app and subwoofer
- Auto Room EQ (available soon) for automatic room optimization
| Weight | 47,3 kg |
|---|---|
| Dimensions | 68 × 74 × 62 cm |
| Select color | Black Ash |
