Introduction
Bi-wire cables can improve the sound of speakers with two sets of connections by lowering impedance and improving signal isolation. The result is often described as more accurate sound reproduction with less distortion and better overall separation between high, mid and low frequencies.

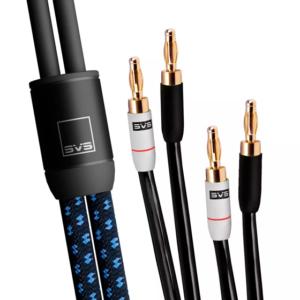

SVS SoundPath Ultra Bi-Wire speaker cables provide pristine transmission of audio signals with double-braided balanced conductors with 164 strands of 99.99% pure copper. This level of engineering ensures a consistent, sonically accurate signal and performance on par with the best bi-wire speaker cables available.
To ward off RF noise and interference, SVS SoundPath Bi-Wire speaker cables feature a three-layer shielding system. A precision machined and anodized aircraft aluminum housing surrounds multiple PVC dielectric cores to protect each conductor from outside interference. The stylish braided cotton shell provides a better grip and protection against physical wear and tear.
Description
Three-layer insulation system prevents interference with style.
3-layer shielding system, including 3.2 mm and 7.6 mm PVC dielectric cores, protects each conductor from noise and distortion due to interference.
Extra durable, precision manufactured and anodized aircraft aluminum housing.
Pure signal transmission from hand-soldered 24K gold-plated spades or banana plugs.
Premium braided cotton shell adds strength and protects against physical wear.
Inspired engineering for uncompromising performance
Technical specifications
- 14 AWG braided speaker wire – Each SoundPath Ultra Bi-Wire cable is made with four braided Dual Balanced conductors, with a total of 164 strands of 99.9% pure braided copper.
- Speaker and amplifier connectors consist of precision machined and anodized aircraft grade aluminum housing – stylish and durable with great feel and easy operation
- PVC dielectric connection – Flexible and durable breakout for positive and negative connections
- Nominal bandwidth = DC-5.0 MHz (3M cable) with ≤1.1 Voltage Standing Wave Radio (VSWR) and ≥26dB Return Loss
- DCR of the conductor = 8 mΩ/meter
- Nominal Impedance = 90Ω – Cable and connectors are impedance-matched to minimize VSWR and Return Loss
- Nominal capacitance = 68pF/meter @ 1kHz
