SVS Ultra Elevation (set of 2)
€ 1.099,00
The world’s most versatile hi-fi home theater speaker. Convincing, immersive sound for Dolby Atmos and other surround channels. Easy to mount on a wall or ceiling.
EISA HOME THEATER LOUDSPEAKER SERIES 2024-2025

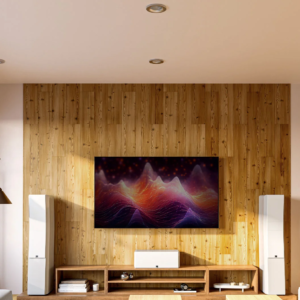

Introduction

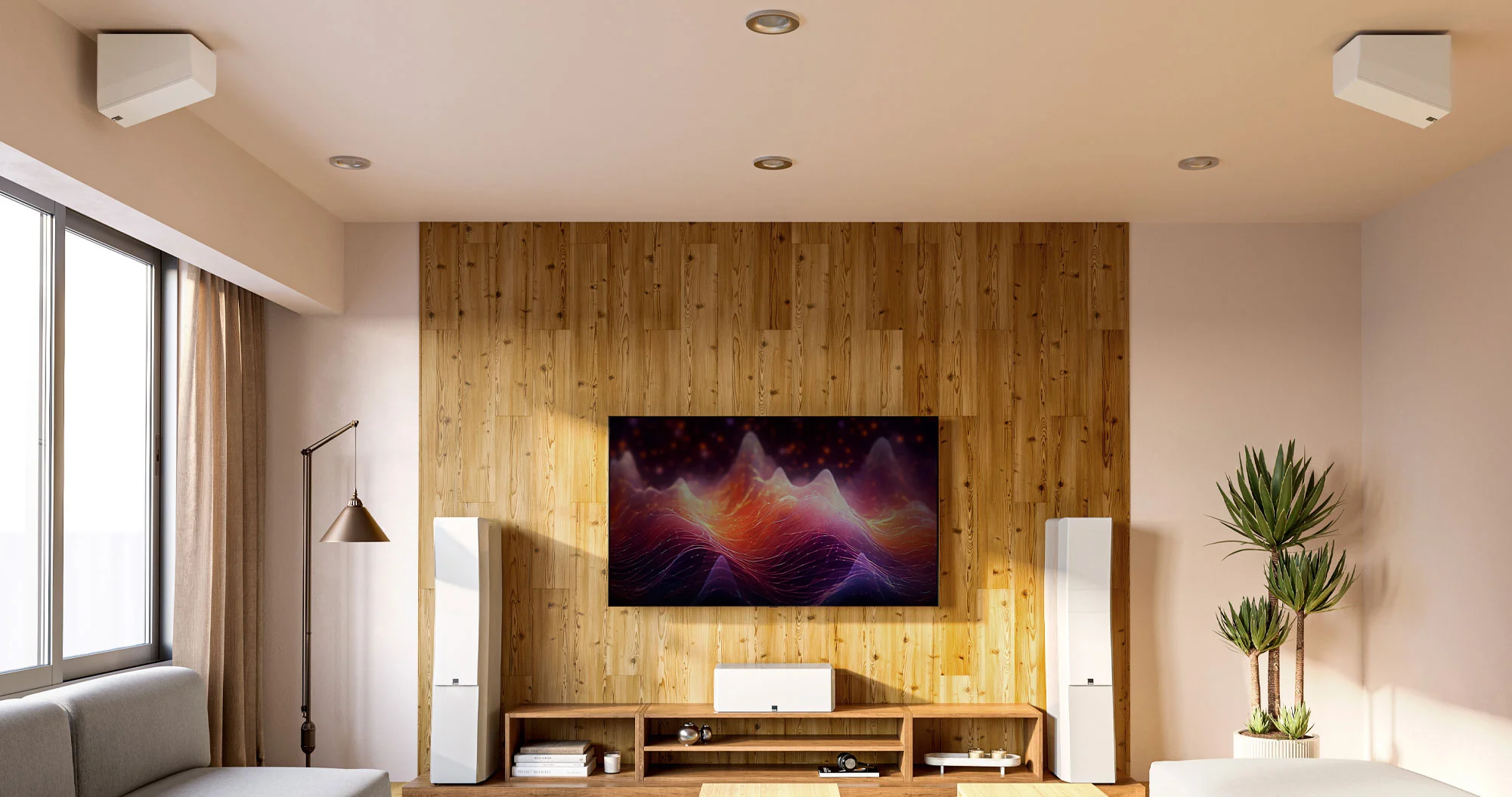

Easily attached to wall or ceiling
The SVS Ultra Elevation loudspeaker represents the culmination of SVS breakthroughs in driver design, component materials and cabinet architecture, combined with a relentless passion for audio excellence.
A larger, more faithful version of the popular SVS Prime Elevation home theater speaker, Ultra Elevation unleashes greater dynamic output and deeper low-frequency extension.
Versatile ceiling and wall mounts make it an ideal speaker for Dolby Atmos or home theater surround sound channels.
An angled faceplate, diamond-coated aluminum dome tweeters, multi-angle mounting bracket and other enhancements embody the uncompromising approach to speaker design.
These innovations are brought to life with meticulous echo-free and real-world intonation. This latest piece of artistry places Ultra Elevation among the best-sounding home theater speakers ever developed.
The enjoyment of pristine clarity, absolute transparency, stunning dynamics and effortless bass for more people than ever. SVS Ultra Elevation connects you deeply to the emotion of sound.
Features
– Wall or ceiling speaker
– 5.25″ mid-woofer

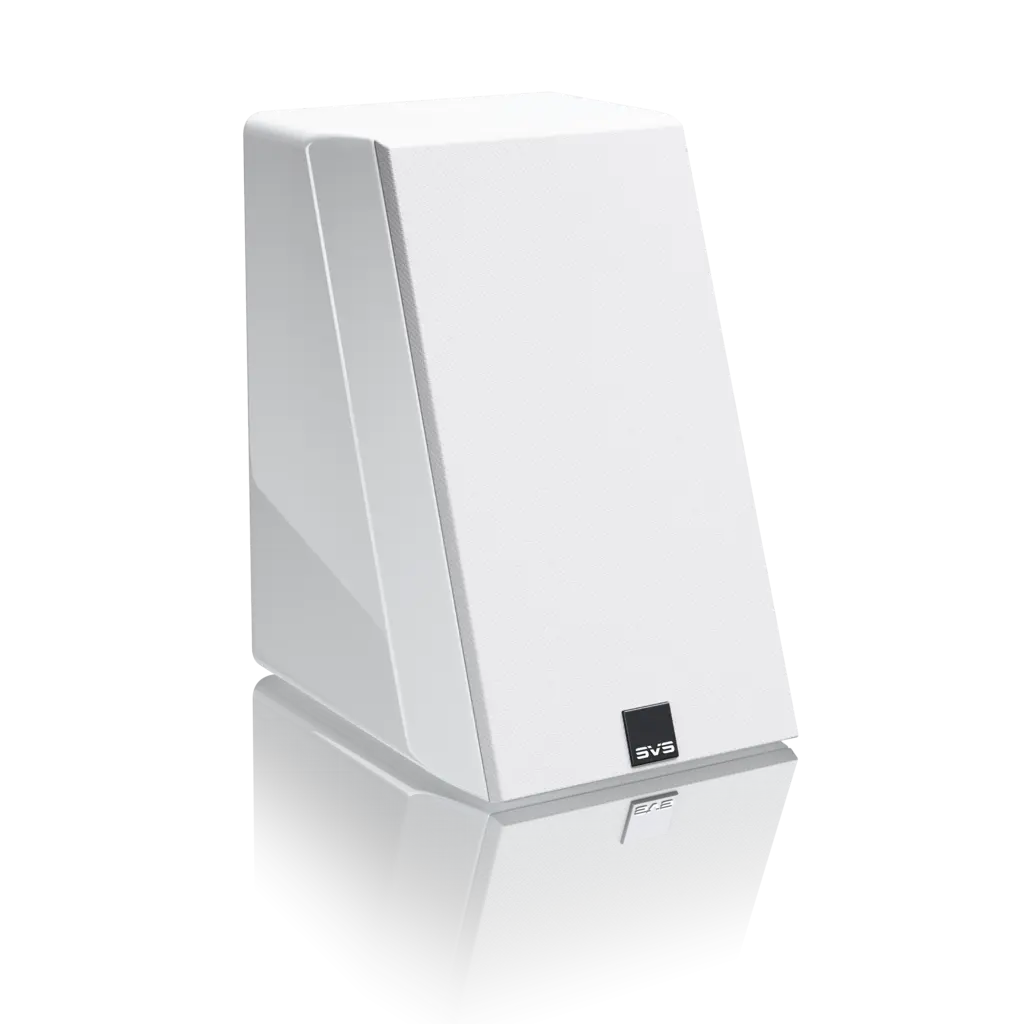

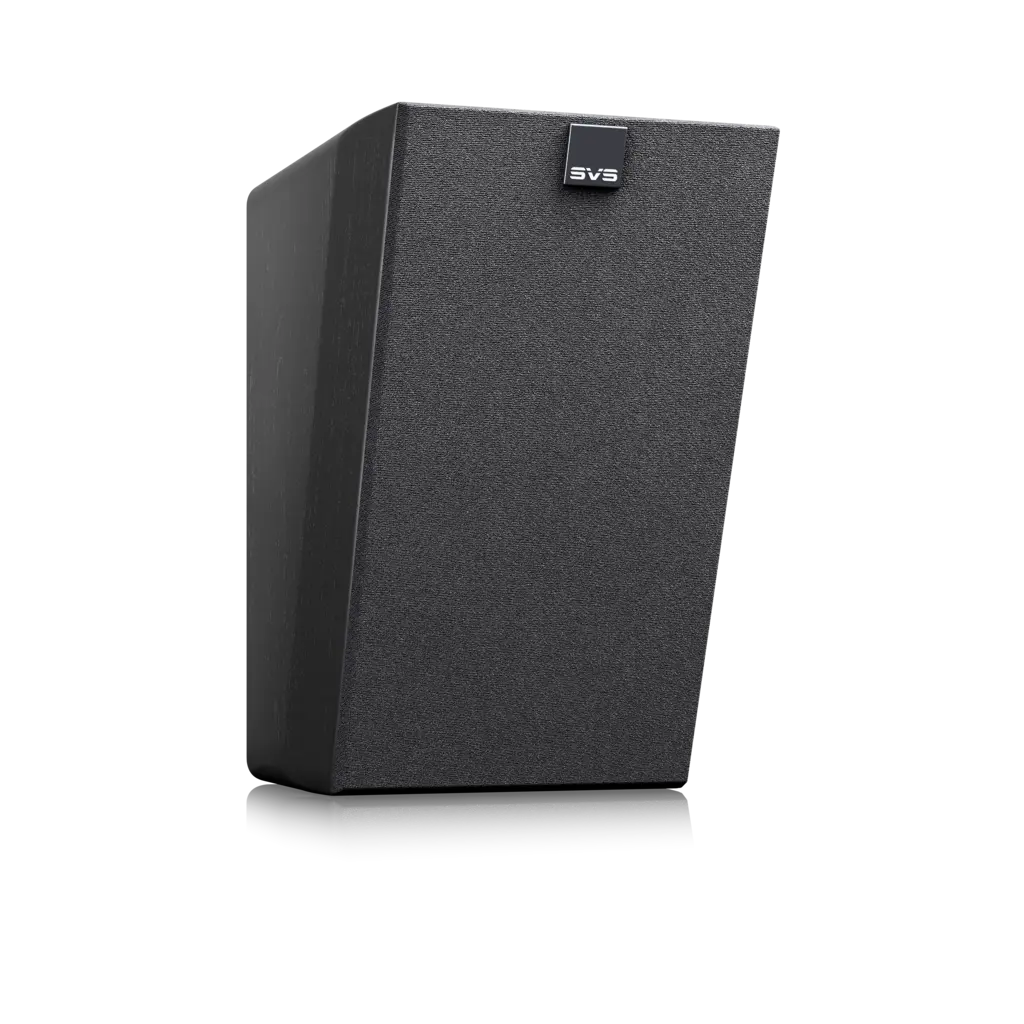

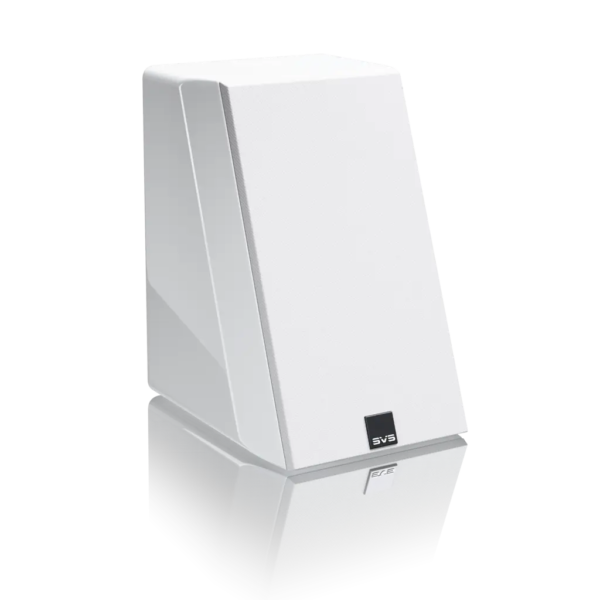

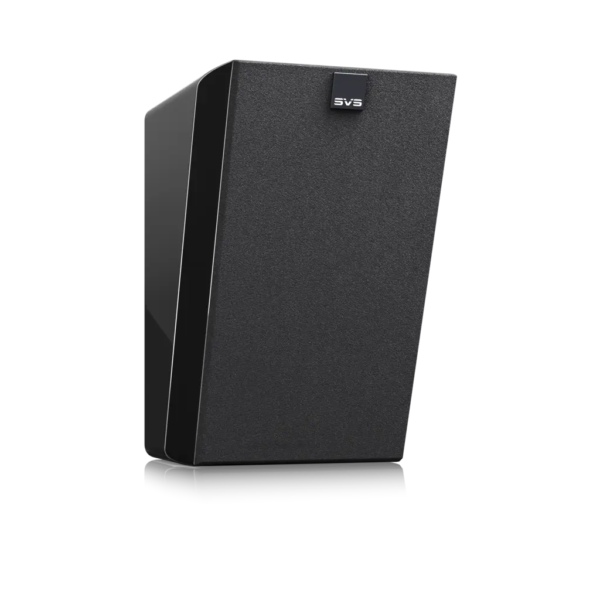

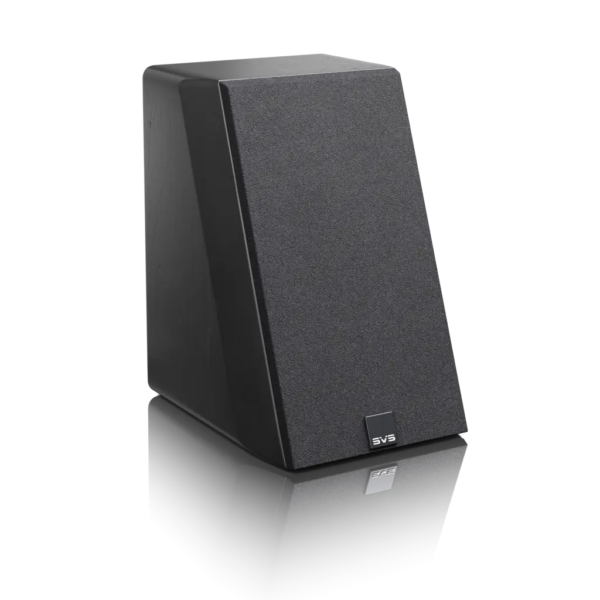

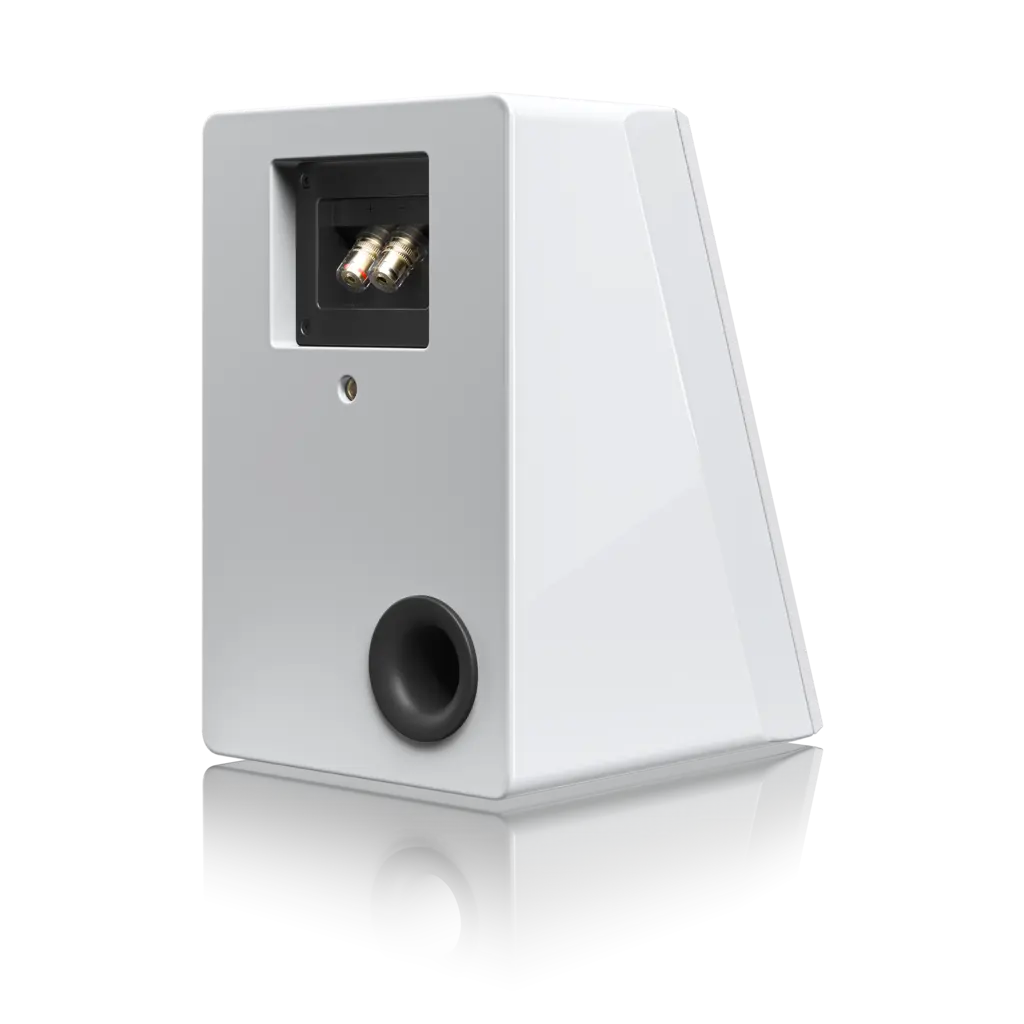

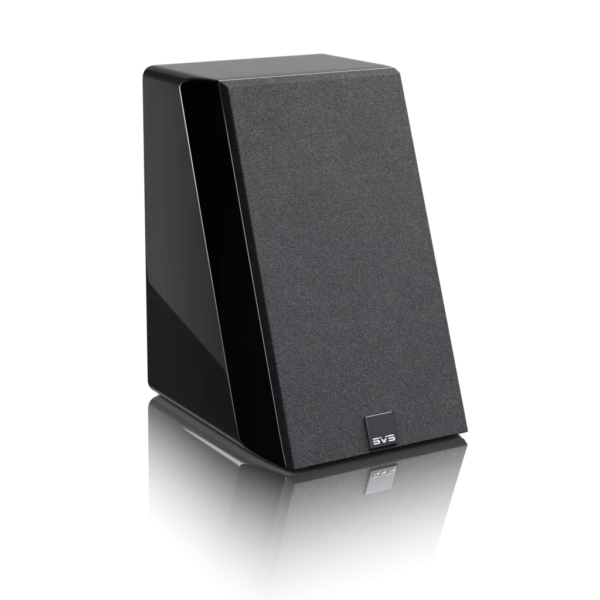

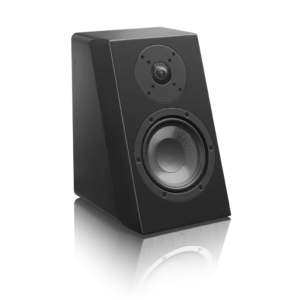

Available in high gloss black, high gloss white or black oak veneer finish.
Description

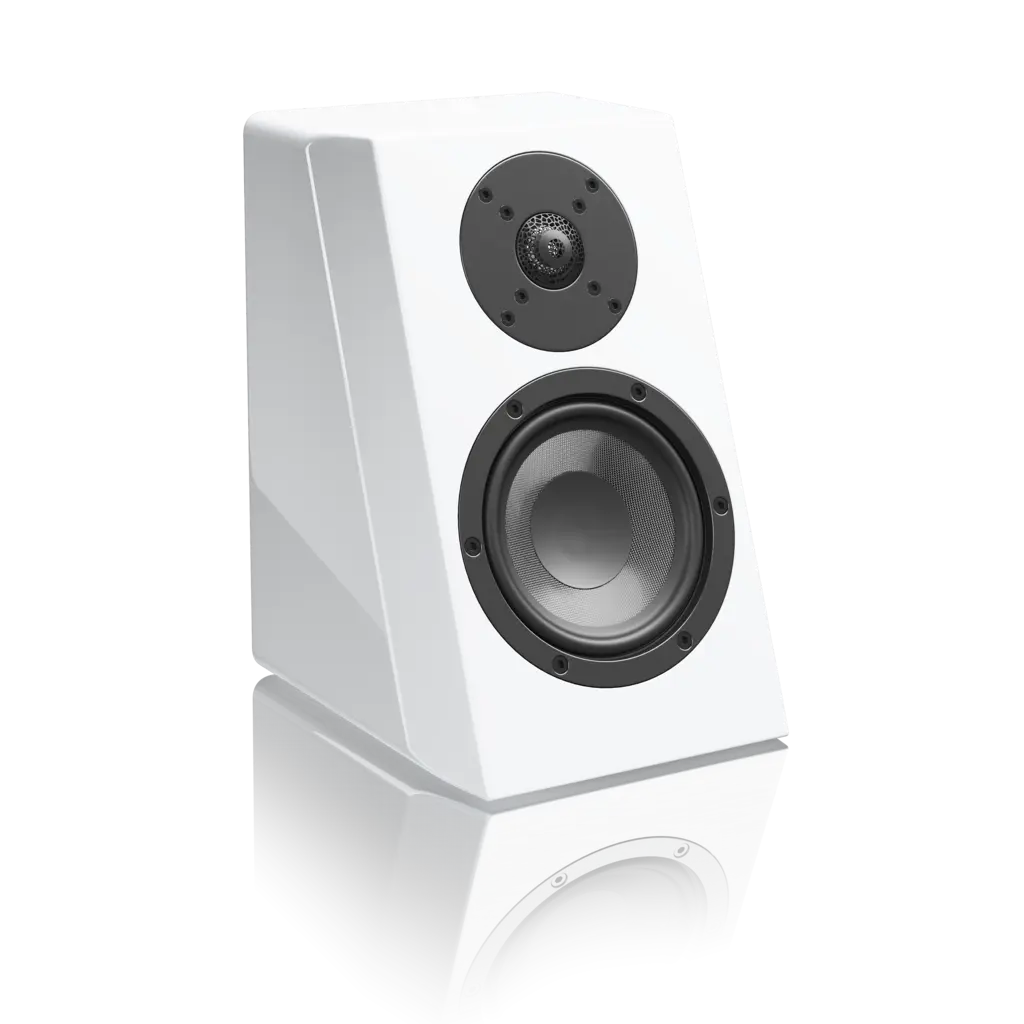

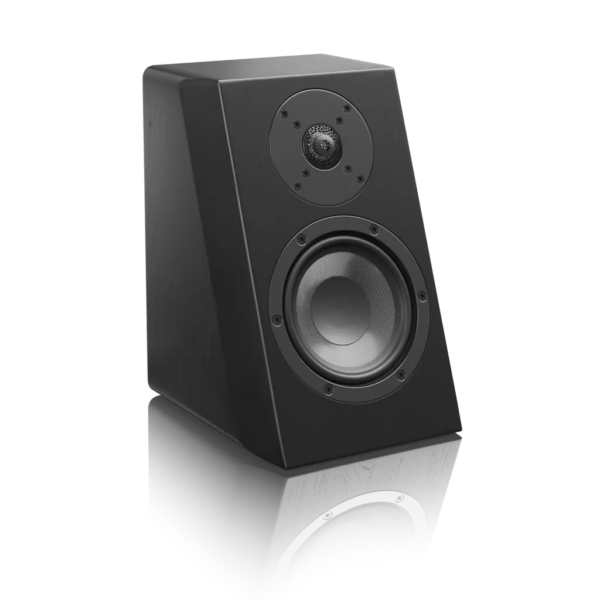

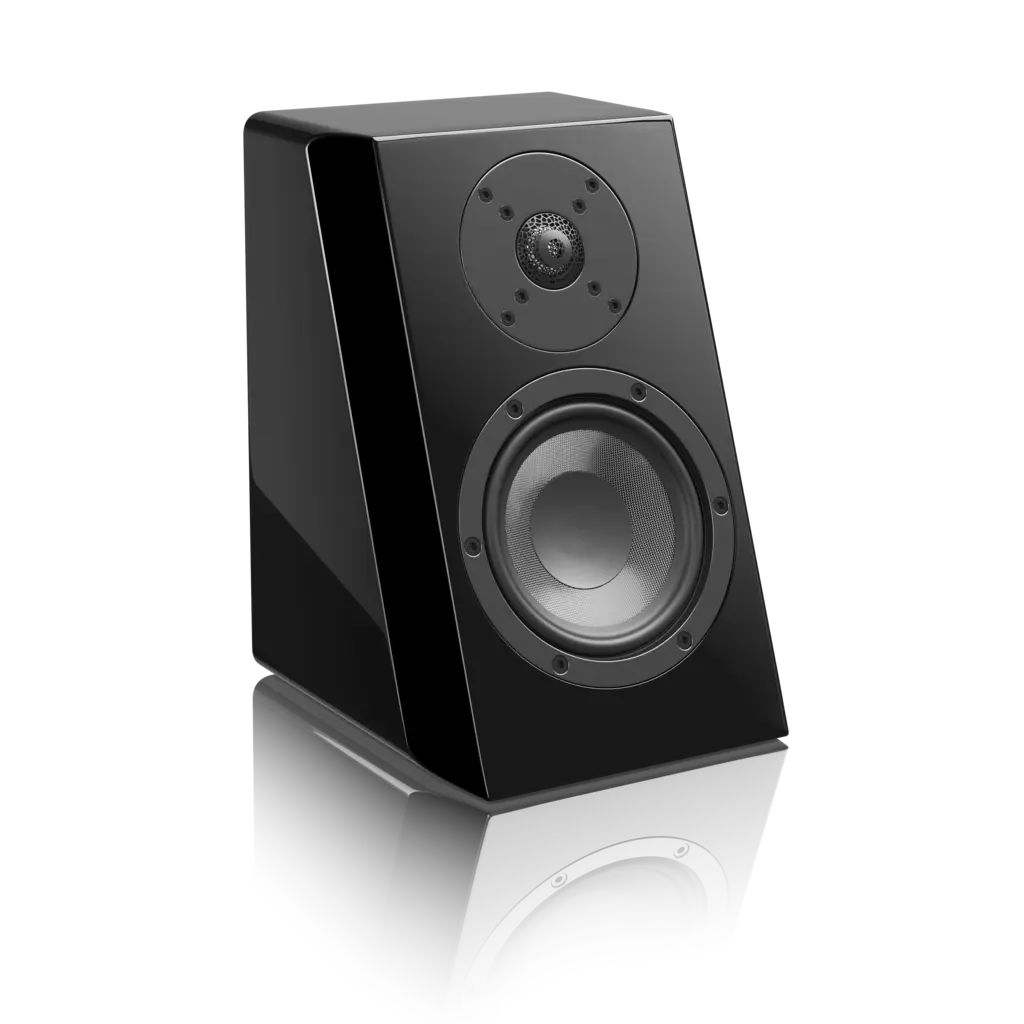

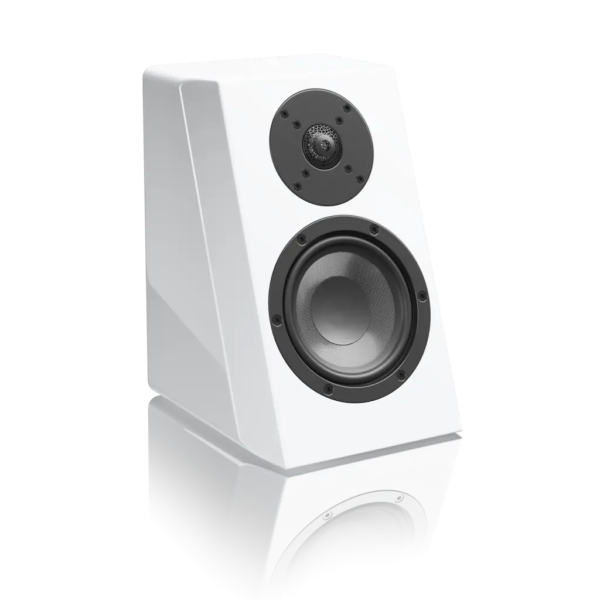

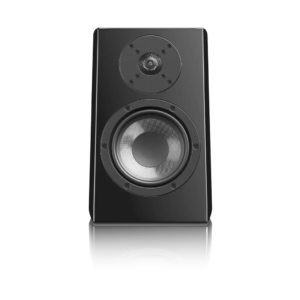

- Diamond Coated Aluminum Dome Tweeter
- At the forefront of audio engineering is a process called Vapor Deposition, in which a layer of diamond carbon is applied to aluminum dome tweeters to vastly improve stiffness and acoustic properties.
- This breakthrough in material science increases frequency response far beyond the limits of human hearing, resulting in effortless, airy and unshrouded highs without measurable distortion.
- The diamond coating also pushes the low-frequency extension of the tweeter deeper for a more seamless blend with the midrange.
- The two-diffuser organic cell lattice protects the dome and uses a semi-random pattern derived from organic cell structures to enhance off-axis response and maximize the listener sweat spot.
- Slanted front plate
- Designed for optimal acoustics and dispersion qualities, whether down-firing, side-firing or up-firing array.
- 5.25″ fiberglass composite center woofer
- The excellent stiffness-to-mass ratio provides stunning midrange dynamics with impeccable tonal accuracy and deep, precise bass.

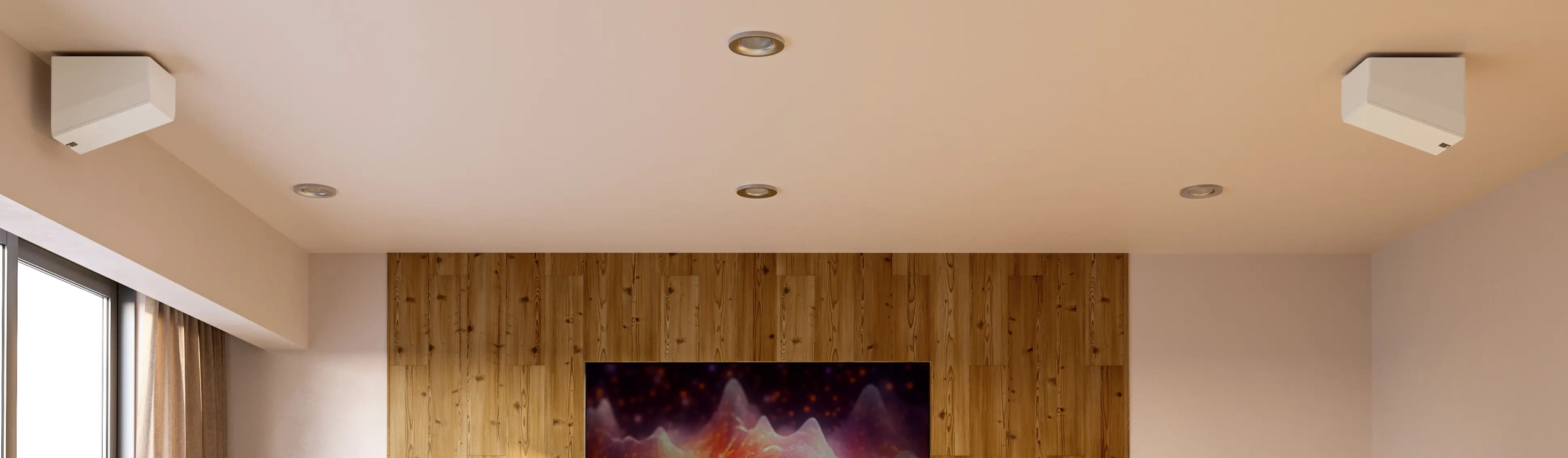

- Versatile placement with multi-angle wall/ceiling mounting
- Ultra Elevation offers unlimited placement options in a room.

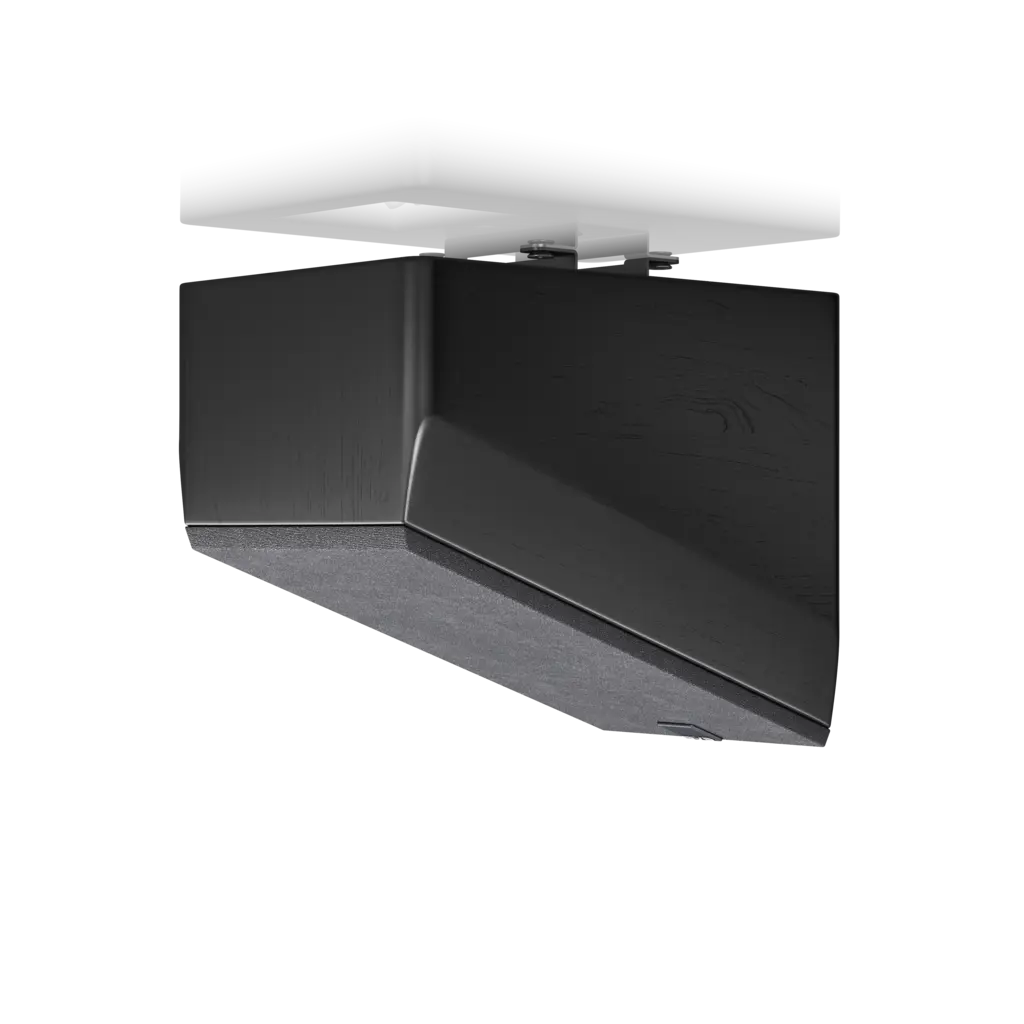

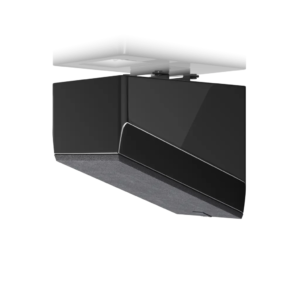

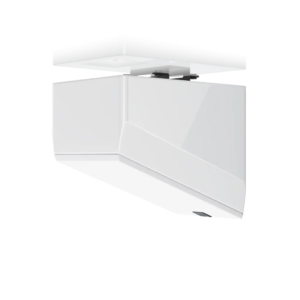

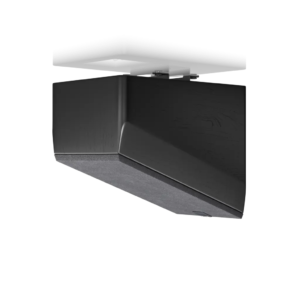

- Easy wall or ceiling mounting with the included Multi-Angle Wall Bracket allows installation overhead or directly on a wall in an upward, downward or sideways facing position.
- Ideal solution for Dolby Atmos height effects and side/rear/back fringes.
- Unrelenting attention to detail
- Separate, acoustically tuned internal chamber for the mid-woofer optimizes separation and eliminates any chance of cabinet resonances, resulting in pristine sound across the entire frequency spectrum.
- Uncompromising 2-way crossover with high-quality components ensures seamless mixing of driver output. Subtle musical details are rendered with breathtaking clarity, while tremendous dynamics radiate with weight and control.
- Precision cast aluminum alloy baskets ensure precise alignment of critical components and maximize heat dissipation.
- Beveled faceplate minimizes edge diffraction for optimal off-axis frequency response.
- Neodymium magnetic grids
- Beautiful finish in high gloss black, high gloss white or black oak veneer.
Technical specifications
Frequency Response/Acoustic Data:
– Room frequency response: 48 Hz to 40 kHz (+/-3 dB)
– Nominal Impedance: 6 ohms
– Sensitivity: 87dB (2.83V @ 1 meter full room, 300Hz – 3kHz)
– Recommended amplifier power: 20 – 150 watts
Speaker Specifications:

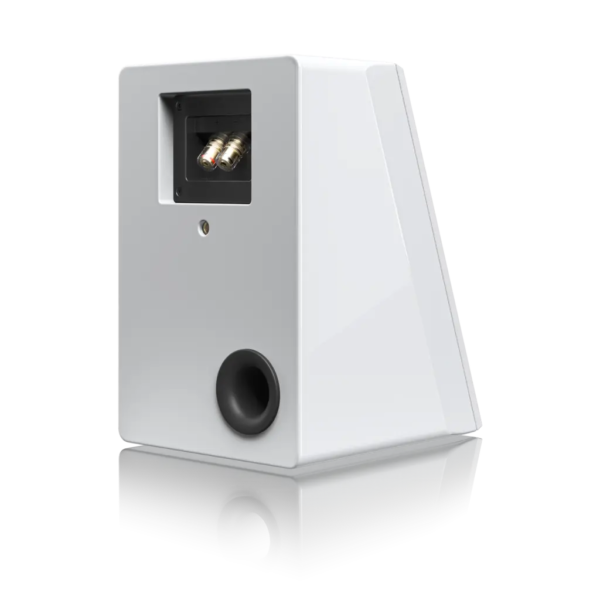

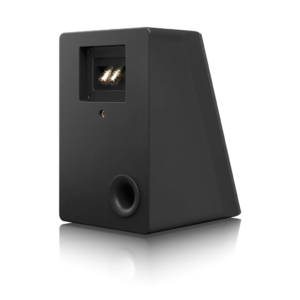

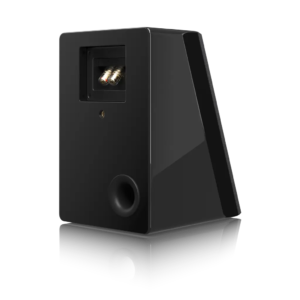

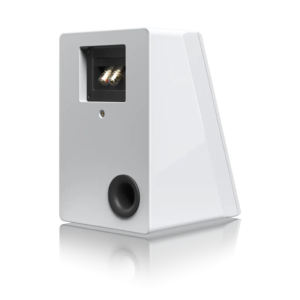

– Gold-plated 5-way connectors
– 1.4″ wide flared rear ports

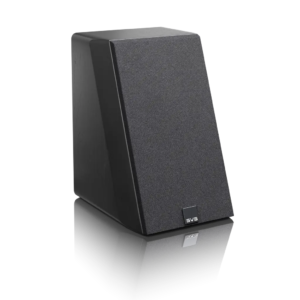

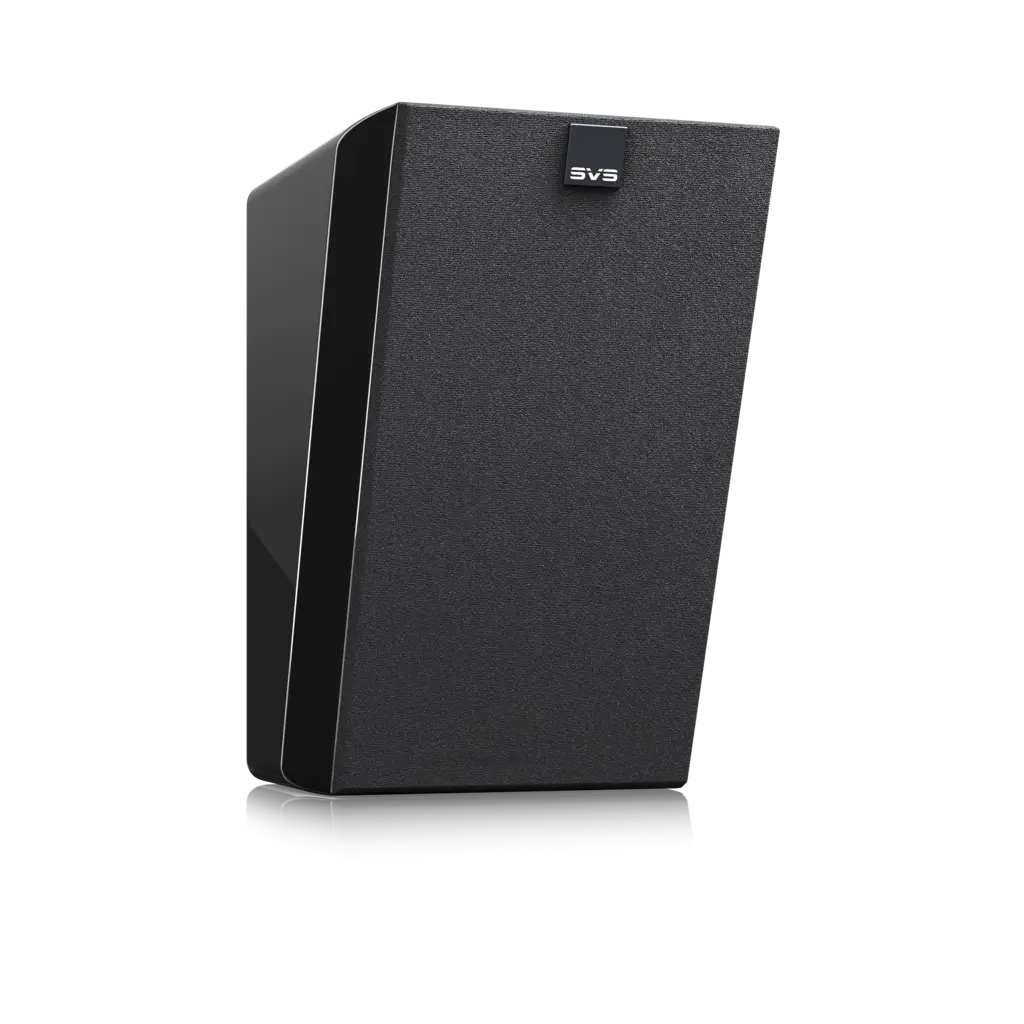

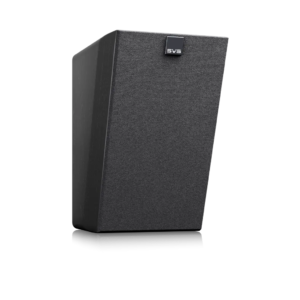

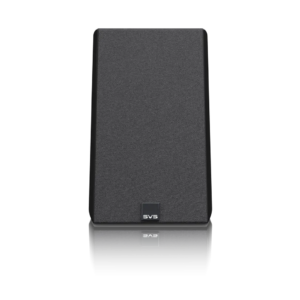

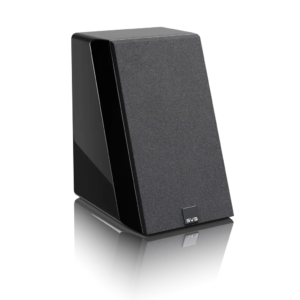

– Fabric grille with magnetic retention system

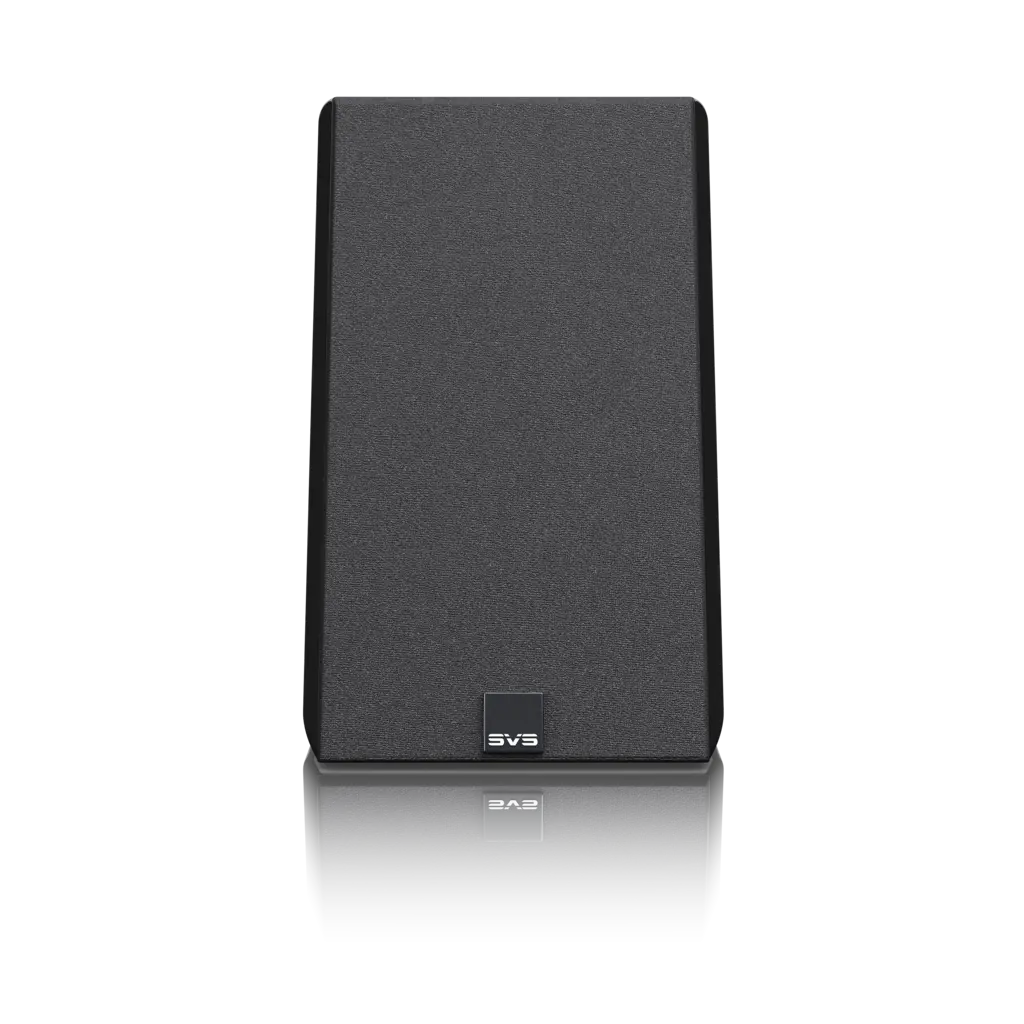

– Adjustable magnetic SVS logo on grille that can be oriented depending on speaker application
– Elastomeric risers
– Multi-angle mounting bracket system that allows the speaker to be hung on the wall or ceiling. Magnetic ceiling mount lock included.
– 1/4″ brass insert for use with included SVS Multi-Angle Mounting Bracket and other mounting systems.
– Enclosure dimensions: 283mm (H) x 185mm (W) x 223.2mm (D)
– Overall dimensions: 287mm (H) x 185mm (W) x 233mm (D) (includes grille, bases and connectors)
– Dimensions: 283mm (H) x 185mm (W) x 249.4mm (D) (includes grille and SVS Multi-Angle mounting bracket)
– Dimensions Shipped (Pair): 295mm (H) x 532mm (W) x 381mm (D)
– Weight Packed Pair: 27.8 pounds / 12.6 kg
– Weight Unpacked Pair: 12.3 pounds / 5.6 kg
Crossover:
– 2-way crossover with high-quality capacitors, coils, resistors and circuit board with heavy trace
– Tweeter-to-woofer crossover: 1.9 kHz
| Weight | 12,7 kg |
|---|---|
| Dimensions | 53,1 × 38,1 × 29,5 cm |
| Select color | Black Oak, High Gloss Black, High Gloss White |
